Description

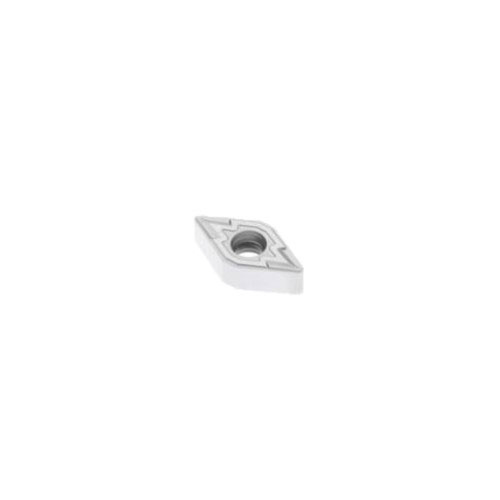

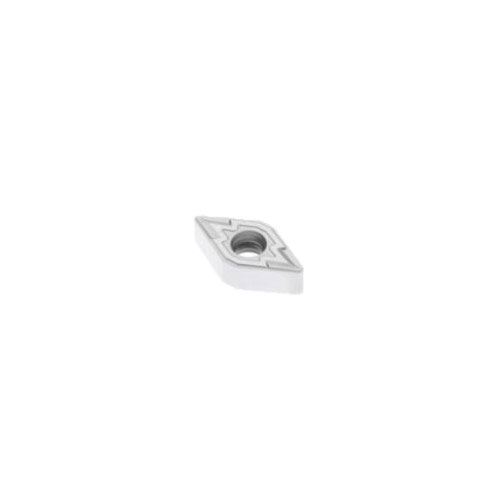

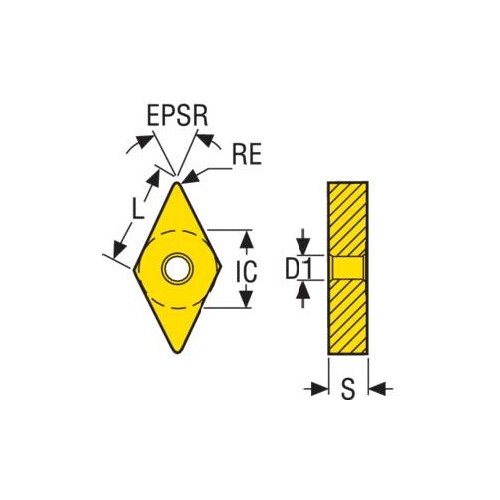

Seco Turning Insert D Shape Code 4.76 x 0.8 x 9.53mm U Insert Type - M3 Grade TP1501 ± 0.13/± 0.05mm Tolerance DNMU110408-M3,TP1501 10pcs

Turning Insert DNMU Insert Style - M3 Grade TP1501

D shape code.

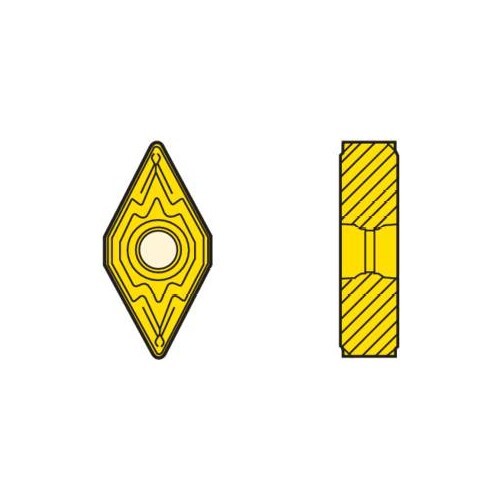

U insert type, negative insert with hole and chip-breaker on both faces for tool holders with pin lock only.
TP1501 insert grade.

TP1501 Insert Grade

Duratomic® grade.
Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M3 Chipbreaker Programme

First choice for medium-rough machining and also the most versatile Seco chipbreaker.
In most cases, it is the only chipbreaker needed.
It offers the best useful life and best chip breaking in a wide range of cutting data and workpiece materials.
Suitable for precision forged and cast workpieces (NNS or Near Net Shape workpieces) as regards both chip control and edge strength.
Indicative machining range: f = 0,15-0,50 mm/rev, ap = 0,5-5,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
