Description

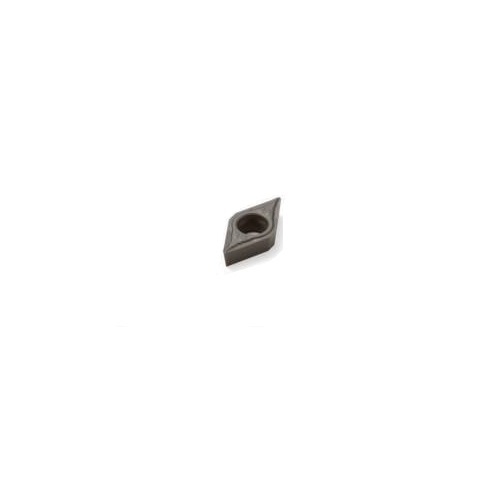

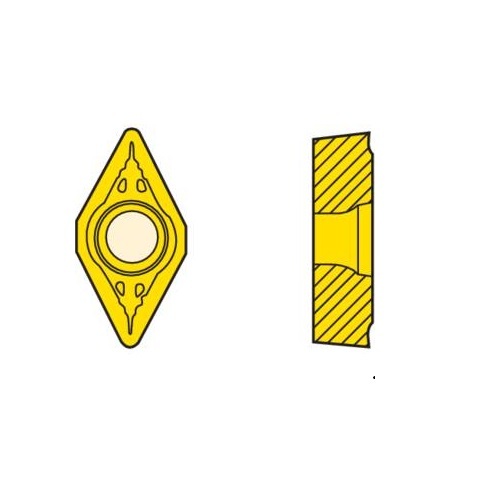

Turning Insert D Shape Code X Insert Type - W-F1 7° Grade TP1020

  • D shape code.
  • X Chipbreaker.
  • 7° insert side clearance angles.

TP1020 Insert Grade

  • Cermet.
  • High wear resistance cermet grade for the highest surface finish with predictability, first of all, in steels and stainless steels.

W-F1 Chipbreaker Programme

  • A versatile chipbreaker for positive inserts. For finishing machining of steel, stainless steel and cast iron giving good surface finish.
  • Suitable for high feed rates at small depths of cut.
  • Indicative machining range: f = 0,05-0,50 mm/rev, ap = 0,25-3,00 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116130
  • Brand Seco
  • Model Number 02754872
  • Barcode Number 54872027001008

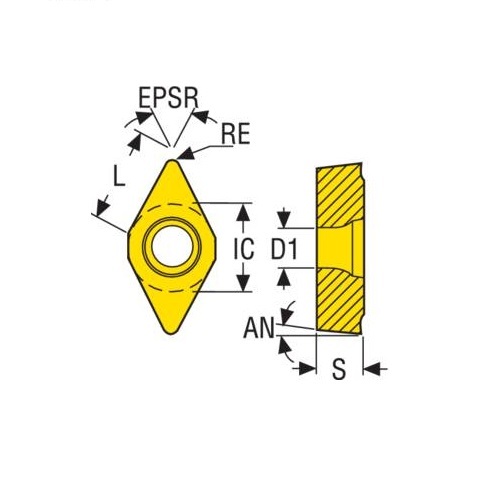

  • Designation DCMX11T308W-F1,TP1020
  • Fixing Hole Diameter D1 Mm 4.5
  • Chipbreaker Programme W-F1
  • Tolerance ñ 0.13/ñ 0.05mm
  • Theoretical Cutting Edge Length (L) mm 11.6
  • Insert Included Angle (epsr) Deg 55.0 deg
  • Fixing Hole Diameter (d1) Mm 4.5
  • Clearance Angle Major (an) Deg 7.0 deg
  • Inscribed Circle Diameter (IC) mm 9.53
  • Grade Grade TP1020
  • Insert Shape Code (SC) D
  • Insert Seat Size Code (SSC) 11
  • Corner Radius (RE) mm 0.8
  • Insert Thickness (S) mm 3.97
  • Cutting Edge Effective Length (LE) mm 10.8
  • Insert Hand (IH) Neutral
  • Cutting Edge Count (CEDC) 2
  • Grade Type Cermet Uncoated
  • Type Turning Insert
  • Insert Grade Grade TP1020
  • Insert Style DCMT

Video

SKU: A0116130

Seco Turning Insert D Shape Code 3.97 x 0.8 x 9.53mm X Insert Type - W-F1 7° Grade TP1020 ± 0.13/± 0.05mm DCMX11T308W-F1 Pack of 10

Turning Insert DCMT Insert Style - F1 7° Grade TP1020

$234.52
