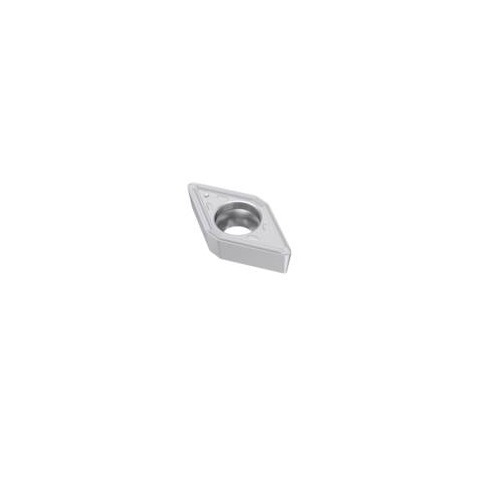

Seco Turning Insert DCMT Insert Style - M3 7° CVD Coated - SECO

Description

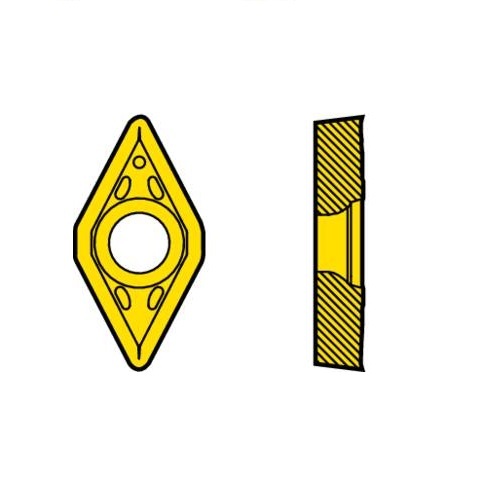

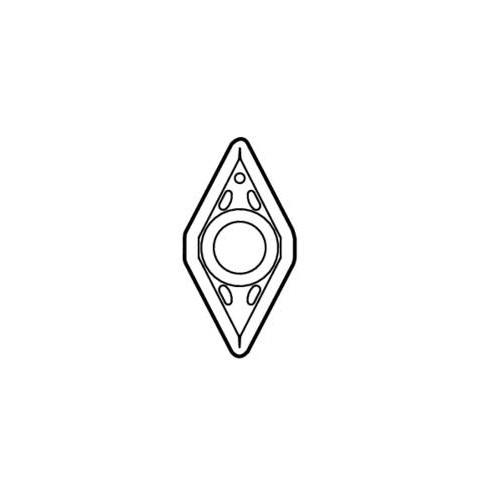

Turning Insert D Shape Code T Insert Type - M3 7° Grade TP2501

D shape code
T Insert Type.
7° insert side clearance angles.

TP2501 Insert Grade

CVD Coated.
Duratomic® grade.
Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0116076

Brand Seco

Model Number 03062764

Barcode Number 62764030001009

Designation DCMT11T308-M3,TK1501

Grade Grade TK1501

Insert Thickness (S) mm 3.97

Corner Radius (RE) mm 0.8

Insert Shape Code (SC) D

Fixing Hole Diameter D1 Mm 4.5

Inscribed Circle Diameter (IC) mm 9.53

Clearance Angle Major (an) Deg 7.0 deg

Fixing Hole Diameter (d1) Mm 4.5

Insert Included Angle (epsr) Deg 55.0 deg

Theoretical Cutting Edge Length (L) mm 11.6

Tolerance ñ 0.13/ñ 0.05mm

Chipbreaker Programme M3

Type Turning Insert
Insert Grade Grade TP2501
Insert Style DCMT
