Specifications
- AIMS SKU A0116127
- Brand Seco
- Model Number 02956315
- Barcode Number 56315029001006
- Designation DCMT11T308-MF2,TP2501
- Grade Grade TP2501

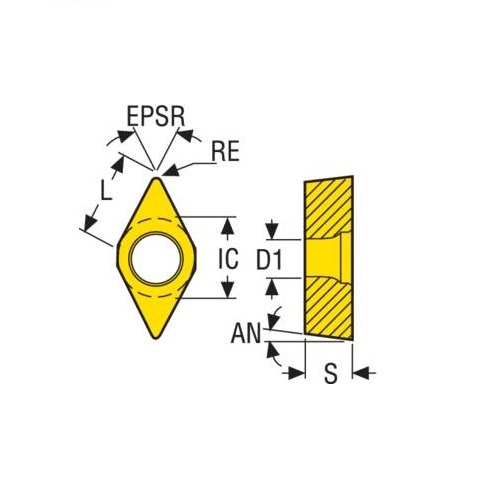

- Insert Thickness (S) mm 3.97
- Corner Radius (RE) mm 0.8
- Insert Shape Code (SC) D
- Fixing Hole Diameter D1 Mm 4.5
- Inscribed Circle Diameter (IC) mm 9.53
- Clearance Angle Major (an) Deg 7.0 deg
- Fixing Hole Diameter (d1) Mm 4.5
- Insert Included Angle (epsr) Deg 55.0 deg
- Theoretical Cutting Edge Length (L) mm 11.6
- Tolerance ñ 0.13/ñ 0.05mm
- Chipbreaker Programme MF2
- Type Turning Insert
- Insert Grade Grade TP2501
- Insert Style DCMT
SKU: A0116127
Seco Turning Insert D Shape Code 3.97 x 0.8 x 9.53mm T Insert Type - MF2 7° Grade TP2501 ± 0.13/± 0.05mm DCMT11T308-MF2 Pack of 10
Turning Insert DCMT Insert Style - MF2 7° Grade TP2501
$209.74
