Description

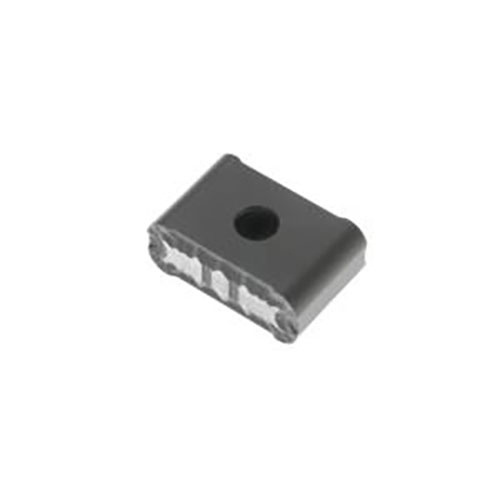

Seco Turning Insert L Shape Code 19.05 x 4 x 30mm X Insert Type - R2 Grade TP0501 ± 0.13/± 0.100mm Tolerance LNMX301940-R2,TP0501 10pcs

Turning Insert LNMX Insert Style - R2 Grade TP0501

  • L shape code.
  • X insert type.
  • TP0501 insert grade.

TP0501 Insert Grade

  • Duratomic® grade.
  • A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

LNMX-R2 Inserts for Railway Wheel Re-turning

  • R2 – for less worn out, soft wheels for best chip control.
  • Feed recommendation: 0,40-1,10 mm/rev.
  • D.O.C. recommendation: ap = 2-5 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0118425
  • Brand Seco
  • Model Number 02960796
  • Barcode Number 60796029001006
  • Designation LNMX301940-R2 TP0501
  • Type Turning Insert
  • Insert Shape Code (SC) L
  • Insert Width (w1) Mm 12.0
  • Chipbreaker Programme R2
  • Theoretical Cutting Edge Length (L) mm 30
  • Insert Included Angle (epsr) Deg 90.0 deg
  • Fixing Hole Diameter (d1) Mm 6.4
  • Clearance Angle Major (an) Deg 0.0 deg
  • Insert Style LNMX
  • Insert Grade Grade TP0501
  • Insert Seat Size Code (SSC) 30
  • Corner Radius (RE) mm 4
  • Insert Thickness (S) mm 19.05
  • Cutting Edge Effective Length (LE) mm 26
  • Insert Hand (IH) Neutral
  • Cutting Edge Count (CEDC) 4
  • Grade Type Carbide CVD
  • Grade TP0501

Video

SKU: A0118425

Seco Turning Insert L Shape Code 19.05 x 4 x 30mm X Insert Type - R2 Grade TP0501 ± 0.13/± 0.100mm Tolerance LNMX301940-R2,TP0501 - Pack of 10

Turning Insert LNMX Insert Style - R2 Grade TP0501

$1,115.40
