Description

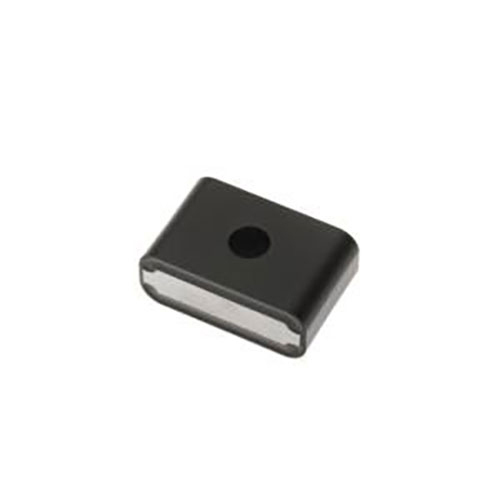

Seco Turning Insert L Shape Code 19.05 x 4 x 30mm X Insert Type - MR Grade TP2501 ± 0.13/± 0.100mm Tolerance LNMX301940-MR,TP2501 10pcs

Turning Insert LNMX Insert Style - MR Grade TP2501

  • L shape code.
  • X insert type.
  • TP2501 insert grade.

TP2501 Insert Grade

  • Duratomic® grade.
  • Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

LNMX-MR Inserts for Railway Wheel Re-turning

  • Basic choice for re-machining.
  • Feed recommendation: 0,6-2,0 mm/rev.
  • D.O.C. recommendation: ap < 15 mm

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0118485
  • Brand Seco
  • Model Number 02960795
  • Barcode Number 60795029001009
  • Designation LNMX301940-MR TP2501
  • Type Turning Insert
  • Insert Shape Code (SC) L
  • Insert Width (w1) Mm 12.0
  • Chipbreaker Programme MR
  • Theoretical Cutting Edge Length (L) mm 30
  • Insert Included Angle (epsr) Deg 90.0 deg
  • Fixing Hole Diameter (d1) Mm 6.4
  • Clearance Angle Major (an) Deg 0.0 deg
  • Insert Style LNMX
  • Insert Grade Grade TP2501
  • Insert Seat Size Code (SSC) 30
  • Corner Radius (RE) mm 4
  • Insert Thickness (S) mm 19.05
  • Cutting Edge Effective Length (LE) mm 26
  • Insert Hand (IH) Neutral
  • Cutting Edge Count (CEDC) 4
  • Grade Type Carbide CVD
  • Grade TP2501
SKU: A0118485

Seco Turning Insert L Shape Code 19.05 x 4 x 30mm X Insert Type - MR Grade TP2501 ± 0.13/± 0.100mm Tolerance LNMX301940-MR,TP2501 - Pack of 10

Turning Insert LNMX Insert Style - MR Grade TP2501

$1,115.40
