Description

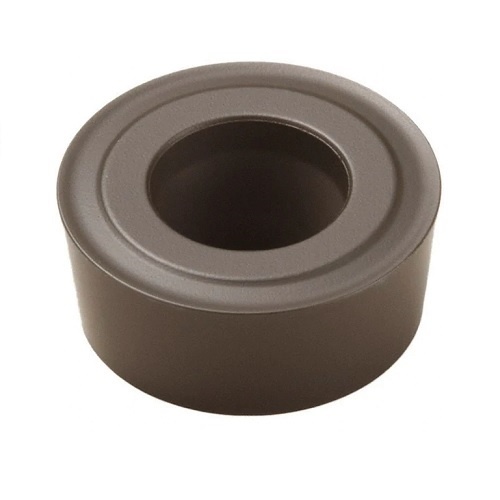

Seco Turning Insert R Shape Code 2.9 x 3.18 x 6.35mm T Insert Type 7° Grade 883 ± 0.13/± 0.05mm RCMT0603-14 Pack of 10

Turning Insert R Shape Code T Insert Type 7° Grade 883

  • R shape code
  • T Insert Type.
  • 7° insert side clearance angles.

883 Insert Grade

  • Uncoated.
  • Relatively hard and still tough uncoated micrograin grade for machining of titanium in roughing applications and also suitable for superalloys.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116532
  • Brand Seco
  • Model Number 00048219
  • Barcode Number 48219000001003
  • Designation RCMT0603-14
  • Type Turning Insert
  • Insert Grade Grade 883
  • Chipbreaker Programme 14
  • Tolerance ñ 0.13/ñ 0.05mm

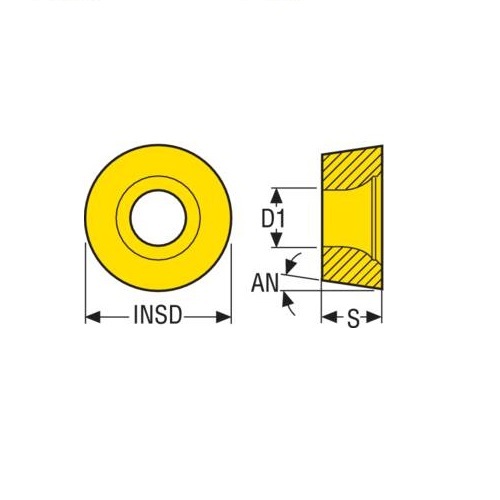

  • Fixing Hole Diameter (d1) Mm 2.9
  • Clearance Angle Major (an) Deg 7.0 deg
  • Insert Diameter (insd) Mm 6.35
  • Fixing Hole Diameter D1 Mm 2.9
  • Insert Style RCMT
  • Insert Shape Code (SC) R
  • Insert Seat Size Code (SSC) 6
  • Insert Thickness (S) mm 3.18
  • Insert Hand (IH) Neutral
  • Cutting Edge Count (CEDC) 4
  • Grade Type Carbide Uncoated
  • Grade Grade 883
SKU: A0116532

Seco Turning Insert R Shape Code 2.9 x 3.18 x 6.35mm T Insert Type 7° Grade 883 ± 0.13/± 0.05mm RCMT0603-14 Pack of 10

Turning Insert RCMT Insert Style 7° Grade 883

$110.58
