Description

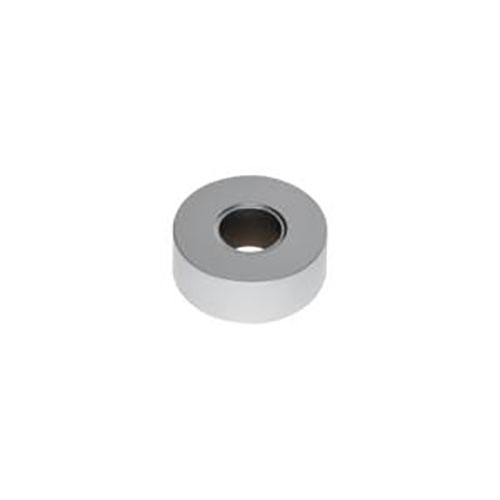

Seco Turning Insert R Shape Code 4.76 x 12.7mm A Insert Type Grade TK1501 ± 0.13/± 0.05mm Tolerance RNMA120400,TK1501 10pcs

Turning Insert RNMA Insert Style Grade TK1501

  • R shape code.
  • A insert type, with a hole, no chipbreaker.
  • TK1501 insert grade.

TK1501 Insert Grade

  • Duratomic® grade.
  • A highly wear-resistant grade for cast irons in general as well as in steels.
  • The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0118404
  • Brand Seco
  • Model Number 03062914
  • Barcode Number 62914030001008
  • Type Turning Insert
  • Designation RNMA120400 TK1501
  • Grade TK1501
  • Grade Type Carbide CVD
  • Cutting Edge Count (CEDC) 8
  • Insert Hand (IH) Neutral
  • Insert Thickness (S) mm 4.76
  • Insert Seat Size Code (SSC) 12
  • Insert Shape Code (SC) R
  • Insert Grade Grade TK1501
  • Insert Style RNMA
  • Insert Diameter (insd) Mm 12.7
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 5.2
SKU: A0118404

Seco Turning Insert R Shape Code 4.76 x 12.7mm A Insert Type Grade TK1501 ± 0.13/± 0.05mm Tolerance RNMA120400,TK1501 - Pack of 10

Turning Insert RNMA Insert Style Grade TK1501

$234.52
