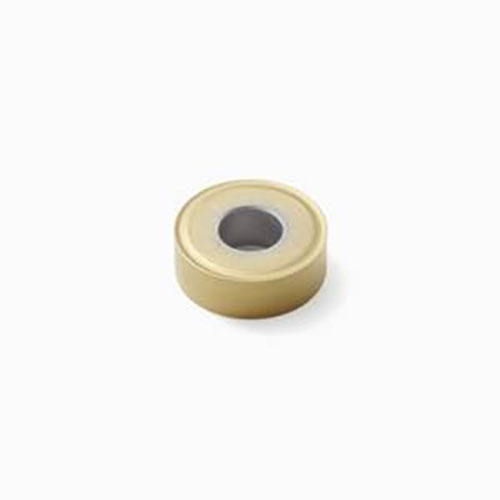

Seco Turning Insert R Shape Code 4.76 x 12.7mm G Insert Type Grade TP40 ± 0.13/± 0.05mm Tolerance RNMG120400-M5(O),TP40 10pcs

Turning Insert RNMG Insert Style Grade TP40

  • R shape code.
  • G insert type, with hole and chipbreaker on both faces.
  • TP40 insert grade.

TP40 Insert Grade

  • Universal grade for a extremely secure performance in the most demanding application from steel, stainless steel to superalloys especially in castings and forgings.
  • TiC/Ti(C,N) + TiN.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0118519
  • Brand Seco
  • Model Number 00078235
  • Barcode Number 78235000001004
  • Type Turning Insert
  • Designation RNMG120400-M5(O) TP40
  • Grade TP40
  • Grade Type Carbide CVD
  • Cutting Edge Count (CEDC) 4
  • Insert Hand (IH) Neutral
  • Insert Thickness (S) mm 4.76
  • Insert Seat Size Code (SSC) 12
  • Insert Shape Code (SC) R
  • Insert Grade Grade TP40
  • Insert Style RNMG
  • Insert Diameter (insd) Mm 12.7
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 5.2
SKU: A0118519

Seco Turning Insert R Shape Code 4.76 x 12.7mm G Insert Type Grade TP40 ± 0.13/± 0.05mm Tolerance RNMG120400-M5(O),TP40 - Pack of 10

Turning Insert RNMG Insert Style Grade TP40

$215.46
