Description

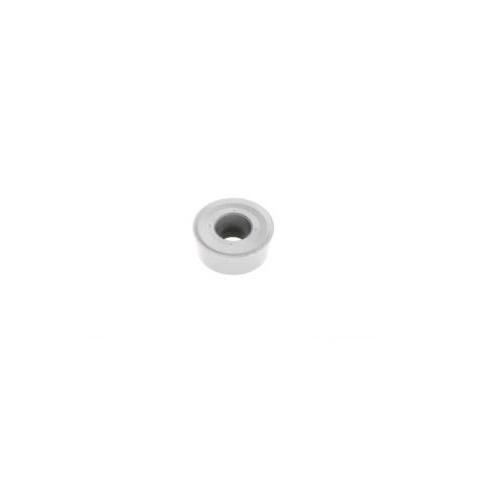

Seco Turning Insert R Shape Code 5.2 x 6.35 x 16mm X Insert Type - RR94 7° Grade TP3501 ± 0.13/± 0.05mm RCMX160600-RR94 Pack of 10

Turning Insert R Shape Code X Insert Type - RR94 7° Grade TP3501

  • R shape code
  • X Insert Type.
  • 7° insert side clearance angles.

TP3501 Insert Grade

  • CVD Coated.
  • Duratomic® grade.
  • Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steels especially including interrupted cuts.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

RR94 Chipbreaker Programme

  • Chipbreaker for large inserts intended for roughing of railway wheels.
  • Indicative machining range: f = 0,6–1,5 mm/rev, ap = 3,0–10,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116557
  • Brand Seco
  • Model Number 03096403
  • Barcode Number 96403030001004
  • Designation RCMX160600-RR94,RCMX160600-RR94,TP3501
  • Type Turning Insert
  • Insert Grade Grade TP3501
  • Chipbreaker Programme RR94
  • Tolerance ñ 0.13/ñ 0.05mm
  • Fixing Hole Diameter (d1) Mm 5.2
  • Clearance Angle Major (an) Deg 7.0 deg
  • Insert Diameter (insd) Mm 16
  • Fixing Hole Diameter D1 Mm 5.2

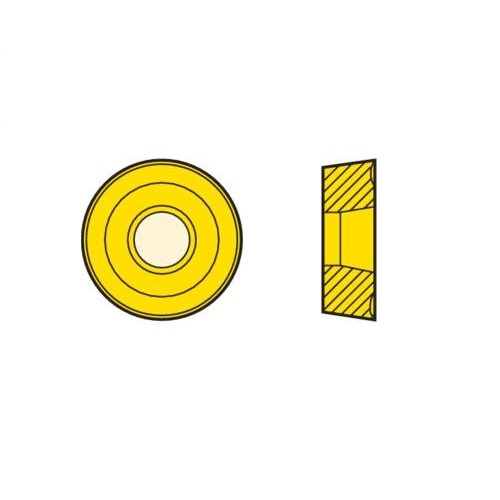

  • Insert Style RCMX
  • Insert Shape Code (SC) R
  • Insert Seat Size Code (SSC) 16
  • Insert Thickness (S) mm 6.35
  • Insert Hand (IH) Neutral
  • Cutting Edge Count (CEDC) 4
  • Grade Type Carbide CVD
  • Grade Grade TP3501
SKU: A0116557

Seco Turning Insert R Shape Code 5.2 x 6.35 x 16mm X Insert Type - RR94 7° Grade TP3501 ± 0.13/± 0.05mm RCMX160600-RR94 Pack of 10

Turning Insert RCMX Insert Style - RR94 7° CVD Coated

$336.52
