Description

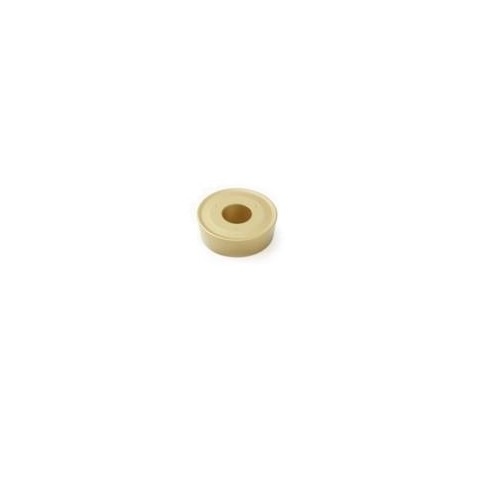

Seco Turning Insert R Shape Code 8 x 6.35 x 19.05mm H Insert Type 7° Grade TS2500 ± 0.13/± 0.05mm RCMM190600-46 Pack of 10

Turning Insert R Shape Code H Insert Type 7° Grade TS2500

  • R shape code
  • H Insert Type.
  • 7° insert side clearance angles.

TS2500 Insert Grade

  • PVD Coated.
  • Relatively hard micrograin grade for machining of superalloys and titanium in roughing applications and due to its design also applicable in a wide range of materials such as stainless steel.
  • (Ti, Al)N + TiN.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116530
  • Brand Seco
  • Model Number 02923093
  • Barcode Number 23093029001005
  • Type Turning Insert
  • Designation RCMM190600-46,RCMM190600-46,TS2500
  • Grade Grade TS2500
  • Grade Type Carbide PVD
  • Cutting Edge Count (CEDC) 4
  • Insert Hand (IH) Neutral

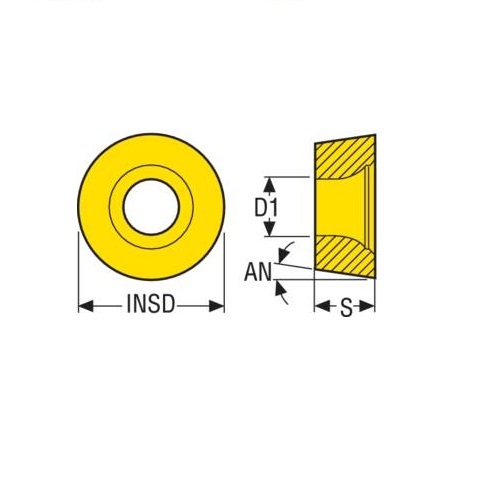

  • Insert Thickness (S) mm 6.35
  • Insert Shape Code (SC) R
  • Insert Grade Grade TS2500
  • Insert Style RCMM
  • Fixing Hole Diameter D1 Mm 8
  • Insert Diameter (insd) Mm 19.05
  • Clearance Angle Major (an) Deg 7.0 deg
  • Fixing Hole Diameter (d1) Mm 8
  • Tolerance ñ 0.13/ñ 0.05mm
  • Chipbreaker Programme 46
SKU: A0116530

Seco Turning Insert R Shape Code 8 x 6.35 x 19.05mm H Insert Type 7° Grade TS2500 ± 0.13/± 0.05mm RCMM190600-46 Pack of 10

Turning Insert RCMM Insert Style - 46 7° Grade TS2500

$398.50
