Seco Turning Insert RCMX Insert Style - RR94 7° CVD Coated - SECO

Description

Turning Insert R Shape Code X Insert Type - RR94 7° Grade TP3501

R shape code
X Insert Type.
7° insert side clearance angles.

TP3501 Insert Grade

CVD Coated.
Duratomic® grade.
Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steels especially including interrupted cuts.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

RR94 Chipbreaker Programme

Chipbreaker for large inserts intended for roughing of railway wheels.
Indicative machining range: f = 0,6–1,5 mm/rev, ap = 3,0–10,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0116195

Brand Seco

Model Number 02960945

Barcode Number 60945029000308

Designation RCMX320900-RR94,TP0501

Grade Grade TP0501

Grade Type Carbide CVD

Cutting Edge Count (CEDC) 4

Insert Hand (IH) Neutral

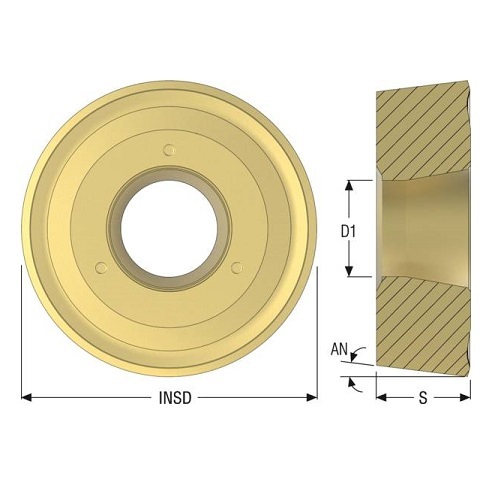

Insert Thickness (S) mm 9.52

Insert Seat Size Code (SSC) 32

Insert Shape Code (SC) R

Fixing Hole Diameter D1 Mm 9.5

Insert Diameter (insd) Mm 32

Clearance Angle Major (an) Deg 7.0 deg

Fixing Hole Diameter (d1) Mm 9.5

Tolerance ñ 0.13/ñ 0.05mm

Chipbreaker Programme RR94

Type Turning Insert
Insert Grade Grade TP3501
Insert Style RCMX
