Description

Seco Turning Insert S Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - M1 Grade 883 ± 0.13/± 0.05mm Tolerance SNMG120408-M1,883 10pcs

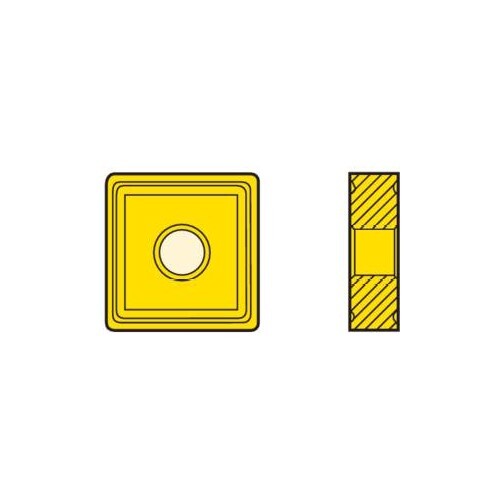

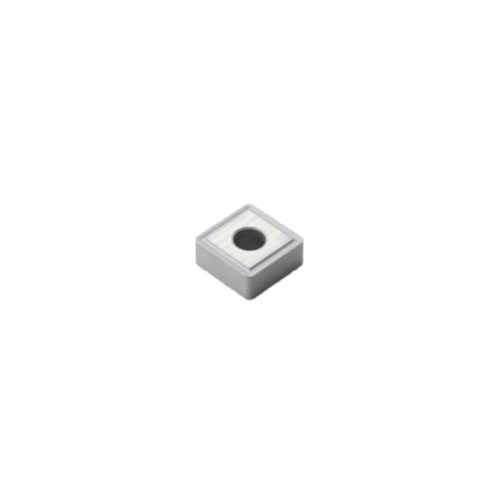

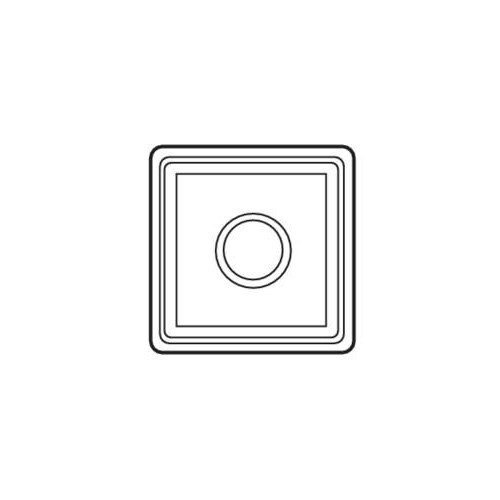

Turning Insert SNMG Insert Style - M1 Grade 883

883 Insert Grade

Relatively hard and still tough uncoated micrograin grade for machining of titanium in roughing applications and also suitable for superalloys.

M1 Chipbreaker Programme

Chipbreaker intended for superalloys and titanium alloys.
It has a positive cutting rake angle which is slightly honed to increase the edge strength. Also available with a perfectly sharp edge (type ..GG insert).
The M1 is intended for light roughing and for semi-finishing.
Indicative machining range: f = 0,2–0,4 mm/rev, ap = 1,5–5,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
