Description

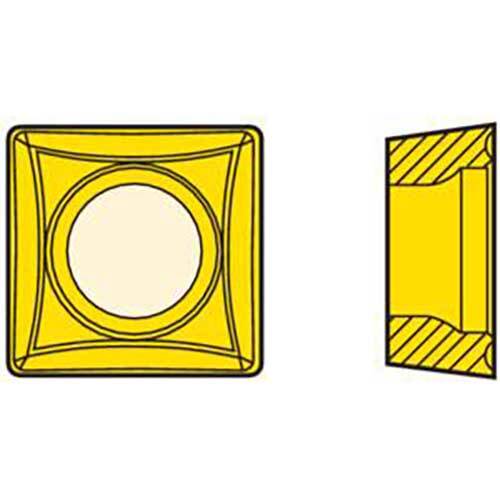

Turning Insert SCMT Insert Style - RR96 7° Grade TP25

  • S shape code
  • T Insert Type.
  • 7° insert side clearance angles.

TP25 Insert Grade

  • The universal grade for highly versatile performance over a wide range of applications in steels, stainless steels, and cast irons.
  • Trustworthy alternative at limited cutting speeds or high surface finishes requirements.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

RR96 Chipbreaker Programme

  • Chipbreaker for large inserts intended for machining of steel with high depth of cut and large feed rates.
  • Indicative machining range: f = 0,6–2,2 mm/rev, ap = 3,0–24,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0158546
  • Brand Seco
  • Model Number 03279996
  • Net Weight (kg) 0.162
  • Type Turning Insert
  • Grade TP25
  • Grade Type Carbide CVD:Designation:SCMT380932-RR96 TP25
  • Cutting Edge Count (CEDC) 4

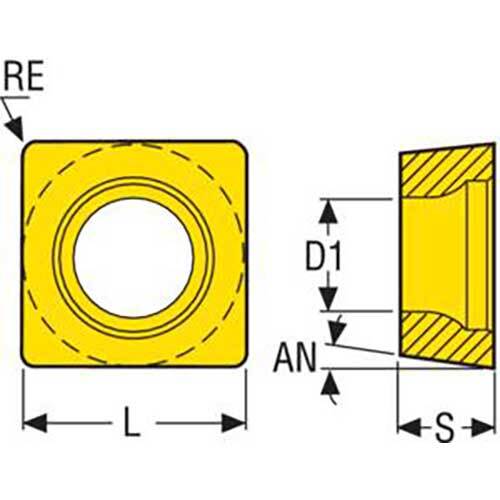

  • Insert Included Angle (EPSR) 90.0 deg
  • Insert Hand (IH) Neutral
  • Cutting Edge Effective Length (LE) mm 23.02
  • Insert Thickness (S) mm 9.52
  • Corner Radius (RE) mm 2.4
  • Inscribed Circle Diameter (IC) mm 25.4
  • Clearance Angle Major (an) Deg 7.0 deg
  • Fixing Hole Diameter (d1) Mm 8.7
  • Theoretical Cutting Edge Length (L) mm 25.4
  • Chip Breaker Manufacturers Designation (CBMD) RR96
  • Insert Seat Size Code (SSC) mm 25
SKU: A0158546

Seco Turning Insert S Shape Code 9.52 x 2.4 x 25.4mm T Insert Type - RR96 7° Grade TP25 SCMT380932-RR96 Pack of 3

Turning Insert SCMT Insert Style - RR96 7° Grade TP25

$572.00

Calculate Shipping

Browse other products under

Turning Inserts

Browse other products by

SECO
