Description

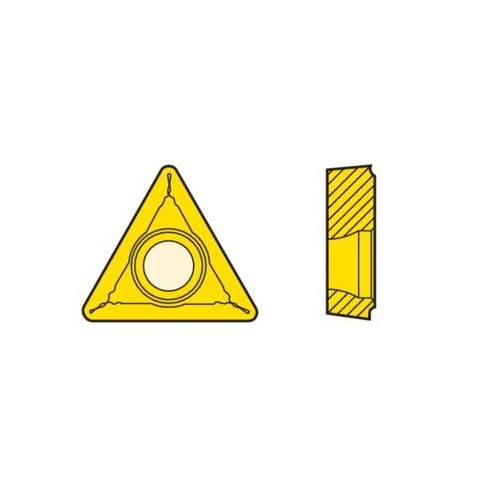

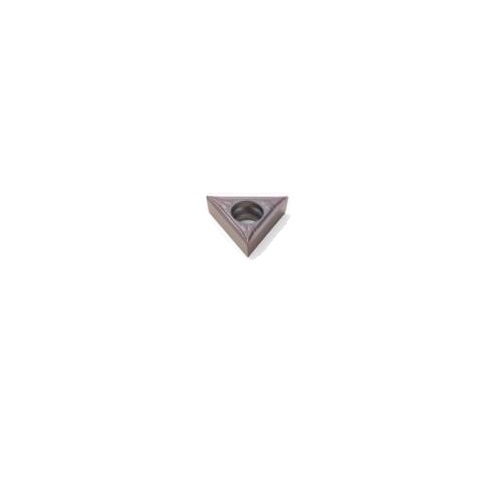

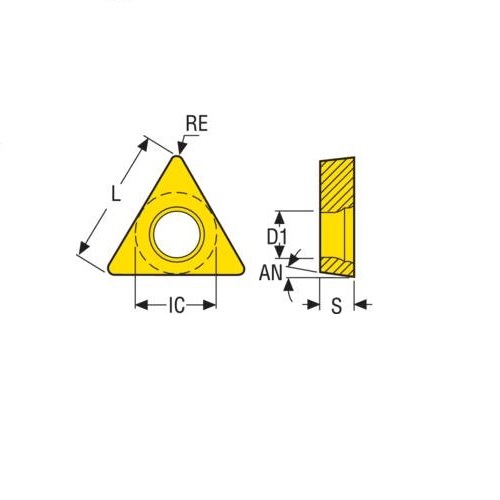

Seco Turning Insert T Shape Code 3.97 x 0.4 x 9.53mm T Insert Type - F1 7° Grade TP1030 ± 0.13/± 0.05mm TCMT16T304-F1 Pack of 10

Turning Insert T Shape Code T Insert Type - F1 7° Grade TP1030

TP1030 Insert Grade

Cermet.
Coated highly wear-resistant cermet grade for high surface finish and productivity requirements mainly used in steels and stainless steels.
Ti-Al-Si-N nanolaminate coating.

F1 Chipbreaker Programme

Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties.
Suitable for high feed rates at fine depths of cut in precision forgings and castings.
Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm.
Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
