Description

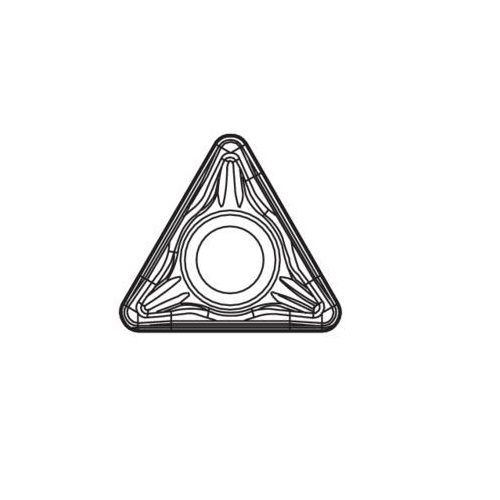

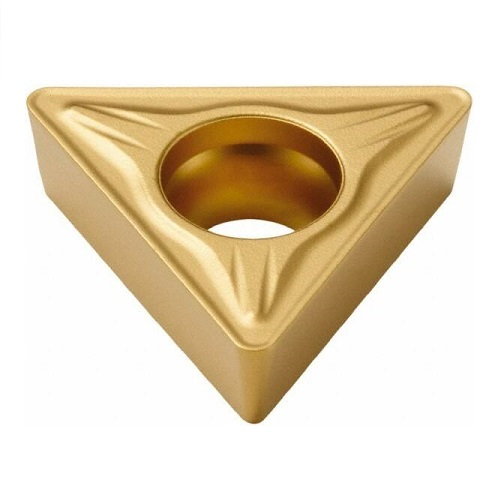

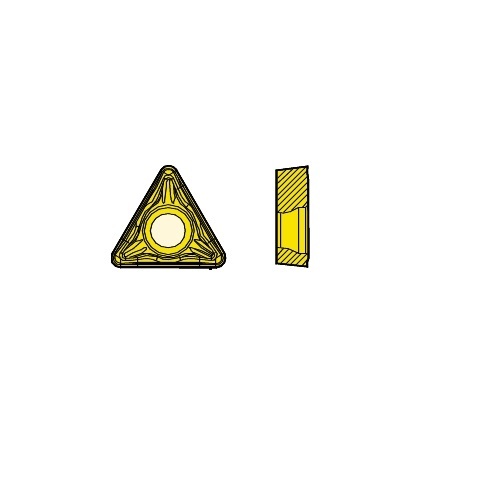

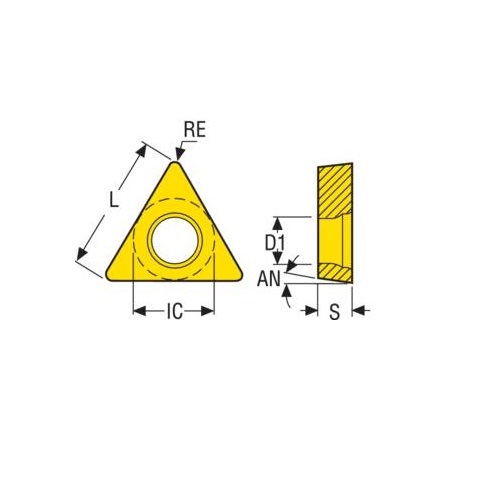

Seco Turning Insert T Shape Code 3.97 x 0.8 x 9.53mm T Insert Type - M5 7° Grade TP40 ± 0.13/± 0.05mm TCMT16T308-M5 Pack of 10

Turning Insert S Shape Code T Insert Type - M5 7° Grade TP40

TP40 Insert Grade

CVD Coated.
The universal grade for extremely secure performance in the most demanding application from steels, stainless steels to superalloys especially in castings and forgings.
TiC/Ti(C,N) + TiN.

M5 Chipbreaker Programme

A highly reliable chip breaker for positive inserts. Intended for medium-rough and rough machining of steels, stainless steels, and cast iron.
Combines high edge strength with comparatively low cutting forces.
Safe action in interruptions and rough skin on parts also including boring.
Indicative machining range: f = 0,15–0,60 mm/rev, ap = 1–5 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
