Description

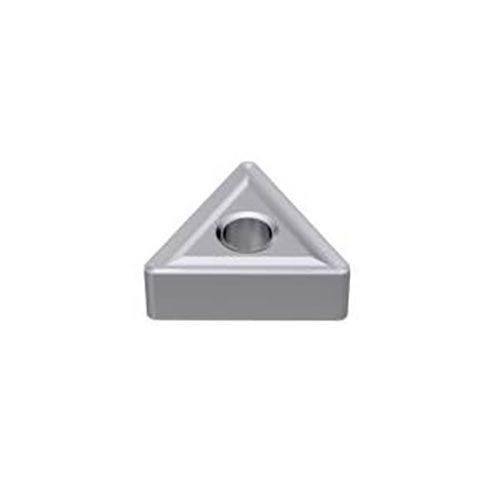

Seco Turning Insert T Shape Code 4.76 x 0.8 x 9.53mm G Insert Type - M4 Grade TK1501 ± 0.13/± 0.05mm Tolerance TNMG160408-M4,TK1501 10pcs

Turning Insert TNMG Insert Style - M4 Grade TK1501

  • T shape code.
  • G insert type, with hole and chip breaker on both faces.
  • TK1501 insert grade.

TK1501 Insert Grade

  • Duratomic® grade.
  • A highly wear-resistant grade for cast irons in general as well as in steels.
  • The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M4 Chipbreaker Programme

  • Chipbreaker intended for cast iron.
  • A positive rake angle with a narrow T-land gives low cutting forces.
  • First choice for cast iron machining at high speeds.
  • Indicative machining range: f = 0,1-0,7 mm/rev, ap = 0,2-0,7 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0118407
  • Brand Seco
  • Model Number 03062809
  • Barcode Number 62809030001007
  • Designation TNMG160408-M4 TK1501
  • Type Turning Insert
  • Insert Shape Code (SC) T
  • Chipbreaker Programme M4
  • Theoretical Cutting Edge Length (L) mm 16.5
  • Insert Included Angle (epsr) Deg 60.0 deg
  • Fixing Hole Diameter (d1) Mm 3.8
  • Clearance Angle Major (an) Deg 0.0 deg
  • Inscribed Circle Diameter (IC) mm 9.53
  • Insert Style TNMG
  • Insert Grade Grade TK1501
  • Insert Seat Size Code (SSC) 16
  • Corner Radius (RE) mm 0.8
  • Insert Thickness (S) mm 4.76
  • Cutting Edge Effective Length (LE) mm 14.5
  • Insert Hand (IH) Neutral
  • Cutting Edge Count (CEDC) 6
  • Grade Type Carbide CVD
  • Grade TK1501

Video

SKU: A0118407

Seco Turning Insert T Shape Code 4.76 x 0.8 x 9.53mm G Insert Type - M4 Grade TK1501 ± 0.13/± 0.05mm Tolerance TNMG160408-M4,TK1501 - Pack of 10

Turning Insert TNMG Insert Style - M4 Grade TK1501

$200.20
