Description

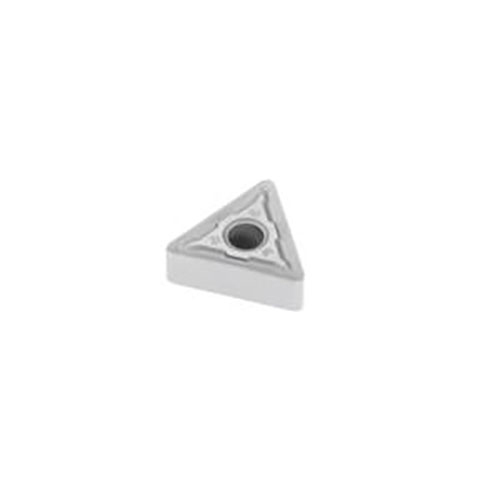

Seco Turning Insert T Shape Code 4.76 x 0.8 x 9.53mm X Insert Type - W-M3 Grade TP2501 ± 0.13/± 0.05mm Tolerance TNMX160408W-M3,TP2501 10pcs

Turning Insert TNMX Insert Style - W-M3 Grade TP2501

TP2501 Insert Grade

Duratomic® grade.
Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

W-M3 Chipbreaker Programme

Versatile chipbreaker for high feed finishing and medium-roughing machining of steel, stainless steel and cast iron.
Operates in a wide application area.
Gives a good surface finish even at high feeds.
Indicative machining range: f = 0,2-0,9 mm/rev, ap = 0,5-6,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
To boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
