Description

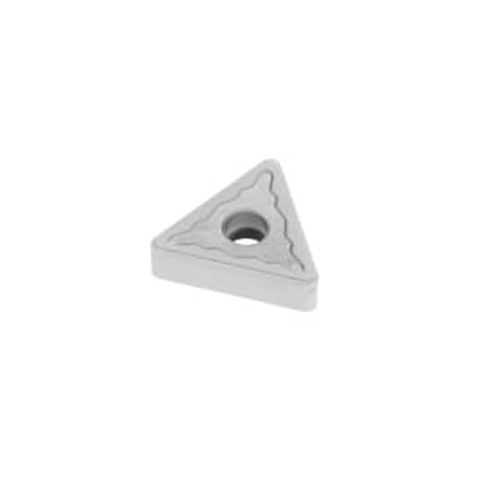

Seco Turning Insert T Shape Code 4.76 x 1.2 x 9.53mm G Insert Type - MR7 Grade TP1501 ± 0.13/± 0.05mm Tolerance TNMG160412-MR7,TP1501 10pcs

Turning Insert TNMG Insert Style - MR7 Grade TP1501

TP1501 Insert Grade

Duratomic® grade.
Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MR7 Chipbreaker Programme

The strongest chipbreaker for double-sided inserts.
The MR7 is suitable for high feed rates and depths of cut that normally require a single-sided insert.
The chipbreaker has a wide negative T land, which gives high edge strength.
Indicative machining range: f = 0,35–0,90 mm/rev, ap = 1,5–7,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
