Description

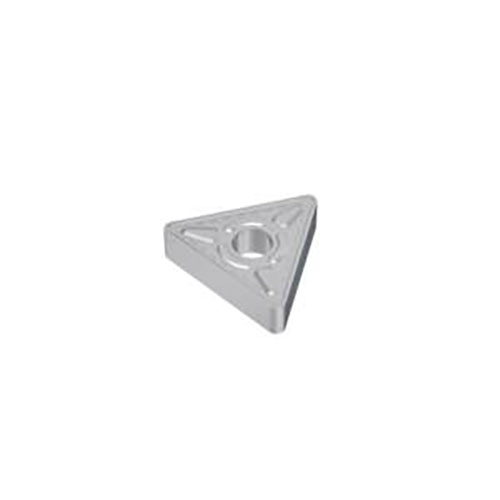

Seco Turning Insert T Shape Code 6.35 x 1.19 x 15.88mm G Insert Type - M6 Grade TP2501 ± 0.13/± 0.05mm Tolerance TNMG270612-M6,TP2501 10pcs

Turning Insert TNMG Insert Style - M6 Grade TP2501 15.88mm Inscribed Circle Diameter (IC)

TP2501 Insert Grade

Duratomic® grade.
Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M6 Chipbreaker Programme

Strong double-sided chipbreaker, intended for semi-roughing and roughing of steel.
A well-balanced design combining excellent chip control and relatively low cutting forces which provides reliable cutting action in both continuous as well as interrupted cuts.
Well suited also for machining of ferritic and martensitic stainless steels.
Indicative machining range: f = 0,2-0,8 mm/rev, ap = 1,0-7,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
