Description

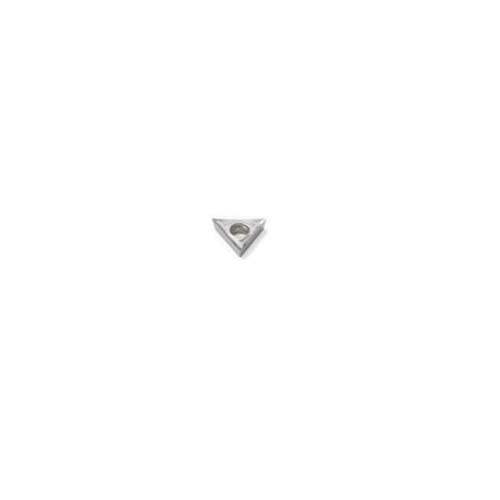

Turning Insert T Shape Code T Insert Type - AL 7° Grade KX

  • T shape code
  • T Insert Type.
  • 7° insert side clearance angles.

KX Insert Grade

  • Uncoated.
  • Optimized micrograin grade intended for the machining of aluminium and other non-ferrous materials.

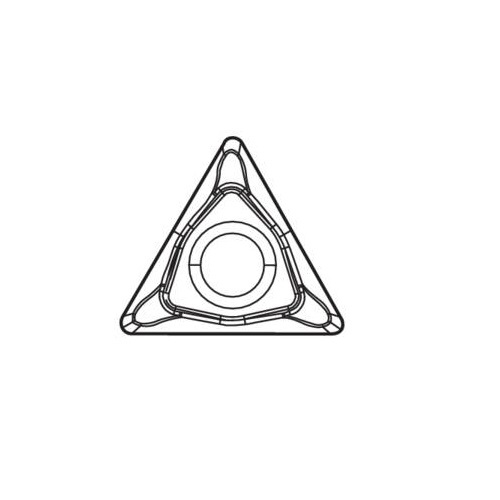

AL Chipbreaker Programme

  • Chipbreaker for positive inserts. Intended for machining of aluminium alloys.
  • The highly polished rake face and the very large rake angle ensure extremely light cutting action.
  • Indicative machining range: f = 0,15–0,60 mm/rev, ap = 0,5–4,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

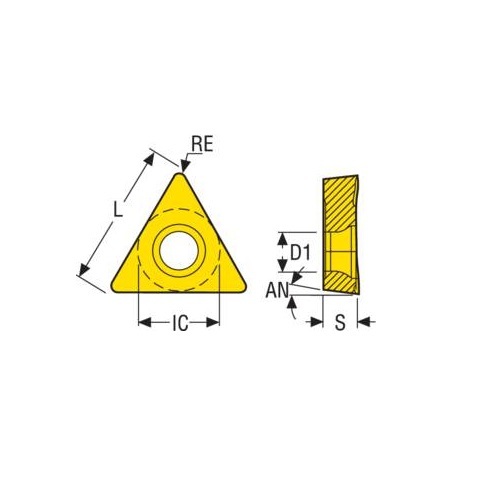

Specifications

  • AIMS SKU A0116263
  • Brand Seco
  • Model Number 00016091
  • Barcode Number 16091000001006
  • Designation TCGT090202F-AL
  • Fixing Hole Diameter D1 Mm 2.5
  • Chipbreaker Programme AL
  • Tolerance ñ 0.05/ñ 0.025mm
  • Theoretical Cutting Edge Length (L) mm 9.63
  • Insert Included Angle (epsr) Deg 60.0 deg
  • Fixing Hole Diameter (d1) Mm 2.5
  • Clearance Angle Major (an) Deg 7.0 deg
  • Inscribed Circle Diameter (IC) mm 5.56
  • Grade Grade KX
  • Insert Shape Code (SC) T
  • Insert Seat Size Code (SSC) 9
  • Corner Radius (RE) mm 0.2
  • Insert Thickness (S) mm 2.38
  • Cutting Edge Effective Length (LE) mm 9.43
  • Insert Hand (IH) Neutral
  • Cutting Edge Count (CEDC) 3
  • Grade Type Carbide Uncoated
  • Type Turning Insert
  • Insert Grade Grade KX
  • Insert Style TCGT

Video

SKU: A0116263

Seco Turning Insert T Shape Code 2.38 x 0.2 x 5.56mm T Insert Type - AL 7° Grade KX ± 0.05/± 0.025mm TCGT090202F-AL Pack of 10

Turning Insert TCGT Insert Style - AL 7° Grade KX

$236.42
