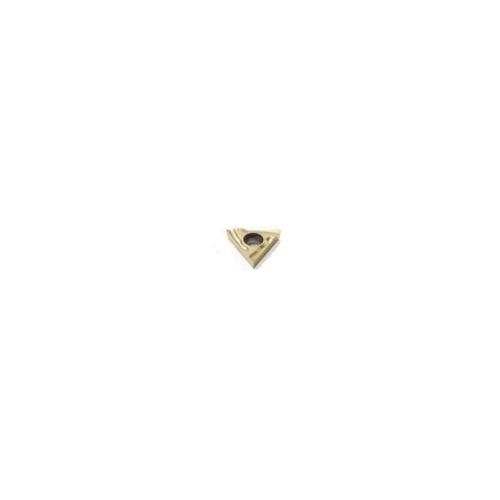

Turning Insert T Shape Code T Insert Type - UX 7° Grade CP500

  • T shape code.
  • T Insert Type.
  • 7° insert side clearance angles.

CP500 Insert Grade

  • PVD Coated
  • Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys.
  • Especially suitable in intermittent cuts.
  • (Ti,Al)N + TiN

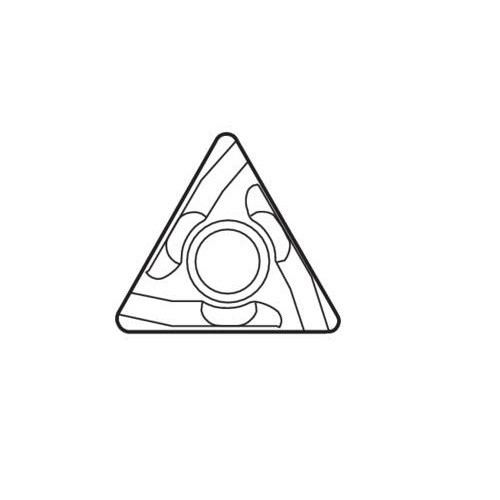

UX Chipbreaker Programme

  • Chipbreaker for positive inserts. Smooth and easy chip flow on finishing and medium roughing in steel and stainless steel. Well suited for slim components.
  • Indicative machining range: f = 0,05–0,40 mm/rev, ap = 0,5-4,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116270
  • Brand Seco
  • Model Number 02497624
  • Barcode Number 97624024001001
  • Designation TCGT110202L-UX

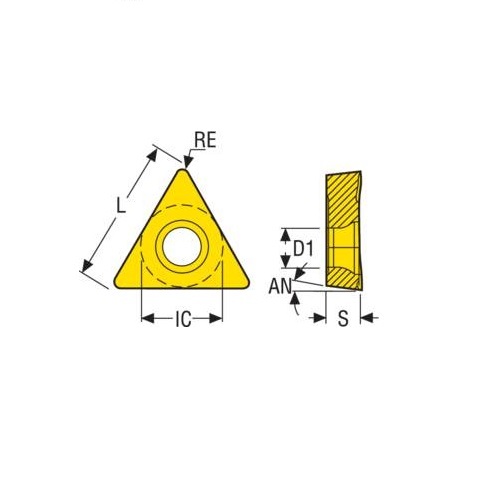

  • Fixing Hole Diameter D1 Mm 2.8
  • Chipbreaker Programme UX
  • Tolerance ñ 0.05/ñ 0.025mm
  • Theoretical Cutting Edge Length (L) mm 11
  • Insert Included Angle (epsr) Deg 60.0 deg
  • Fixing Hole Diameter (d1) Mm 2.8
  • Clearance Angle Major (an) Deg 7.0 deg
  • Inscribed Circle Diameter (IC) mm 6.35
  • Grade Grade CP500
  • Insert Shape Code (SC) T
  • Insert Seat Size Code (SSC) 11
  • Corner Radius (RE) mm 0.2
  • Insert Thickness (S) mm 2.38
  • Cutting Edge Effective Length (LE) mm 7.3
  • Insert Hand (IH) Left
  • Cutting Edge Count (CEDC) 3
  • Grade Type Carbide PVD
  • Type Turning Insert
  • Insert Grade Grade CP500
  • Insert Style TCGT

Video

SKU: A0116270

Seco Turning Insert T Shape Code 2.38 x 0.2 x 6.35mm T Insert Type - UX Left 7° Grade CP500 ± 0.05/± 0.025mm TCGT110202L-UX Pack of 10

Turning Insert TCGT Insert Style - UX 7° Grade CP500

$259.30
