Seco Turning Insert TCMT Insert Style 7° Grade HX - SECO

Description

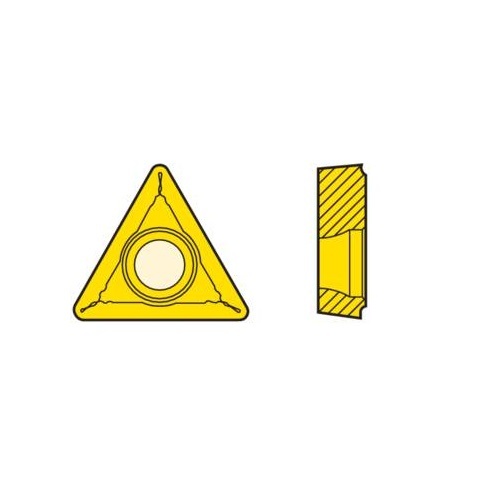

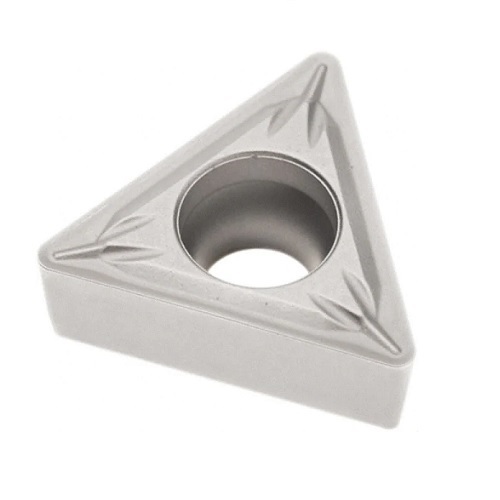

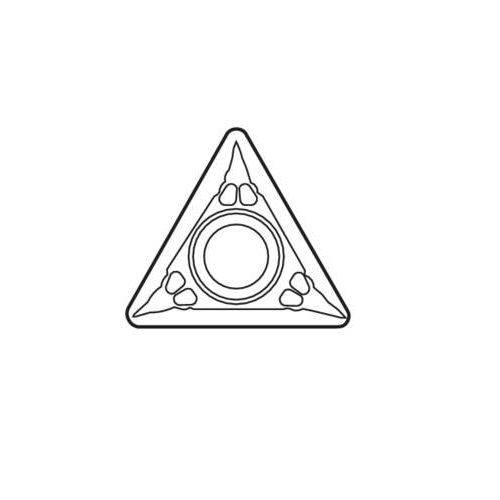

Turning Insert T Shape Code T Insert Type 7° Grade HX

T shape code
T Insert Type.
7° insert side clearance angles.

HX Insert Grade

Uncoated.
A universal uncoated grade intended for machining of cast iron and hardened steels useful also in non-ferrous materials.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0116523

Brand Seco

Model Number 74004037

Barcode Number 4037740001000

Designation TCMT110204-F1(O)

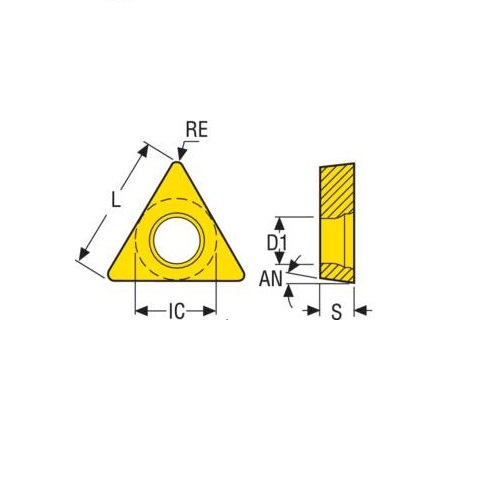

Insert Shape Code (SC) T

Tolerance ñ 0.05/ñ 0.05mm

Theoretical Cutting Edge Length (L) mm 11

Insert Included Angle (epsr) Deg 60.0 deg

Fixing Hole Diameter (d1) Mm 2.9

Clearance Angle Major (an) Deg 7.0 deg

Inscribed Circle Diameter (IC) mm 6.35

Fixing Hole Diameter D1 Mm 2.9

Grade Grade HX

Insert Seat Size Code (SSC) 11

Corner Radius (RE) mm 0.4

Insert Thickness (S) mm 2.38

Cutting Edge Effective Length (LE) mm 10

Insert Hand (IH) Neutral

Cutting Edge Count (CEDC) 3

Grade Type Carbide Uncoated

Type Turning Insert
Insert Grade Grade HX
Insert Style TCMT
