Seco Turning Insert TCMT Insert Style - F2 7° Grade HX - SECO

Description

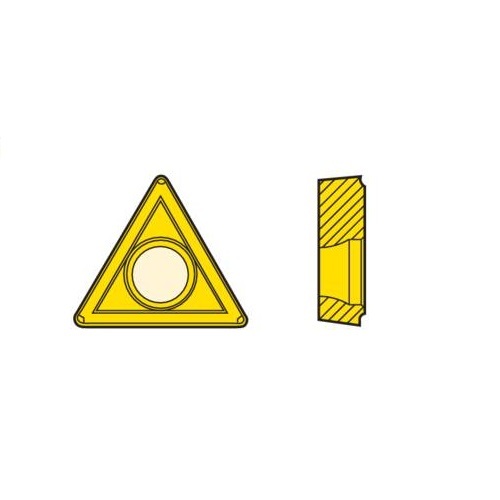

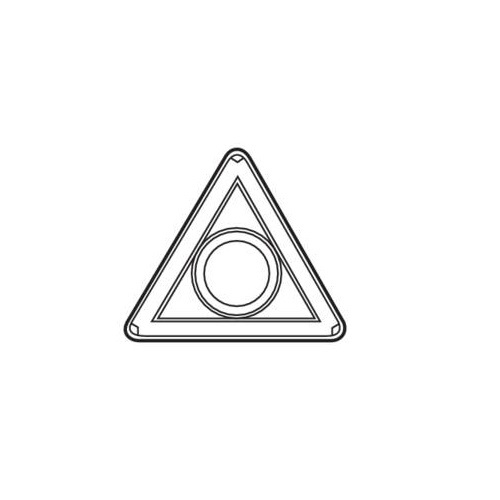

Turning Insert T Shape Code T Insert Type - F2 7° Grade HX

T shape code
T Insert Type.
7° insert side clearance angles.

HX Insert Grade

Uncoated.
A universal uncoated grade intended for machining of cast iron and hardened steels useful also in non-ferrous materials.

F2 Chipbreaker Programme

A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow.
Suitable for medium cuts in steel and stainless steels application including boring.
Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0116318

Brand Seco

Model Number 74011846

Barcode Number 11846740001008

Designation TCMT16T304-F2,HX

Fixing Hole Diameter D1 Mm 4.5

Chipbreaker Programme F2

Tolerance ñ 0.13/ñ 0.05mm

Theoretical Cutting Edge Length (L) mm 16.5

Insert Included Angle (epsr) Deg 60.0 deg

Fixing Hole Diameter (d1) Mm 4.5

Clearance Angle Major (an) Deg 7.0 deg

Inscribed Circle Diameter (IC) mm 9.53

Grade Grade HX

Insert Shape Code (SC) T

Insert Seat Size Code (SSC) 16

Corner Radius (RE) mm 0.4

Insert Thickness (S) mm 3.97

Cutting Edge Effective Length (LE) mm 15.5

Insert Hand (IH) Neutral

Cutting Edge Count (CEDC) 3

Grade Type Carbide Uncoated

Type Turning Insert
Insert Grade Grade HX
Insert Style TCMT
