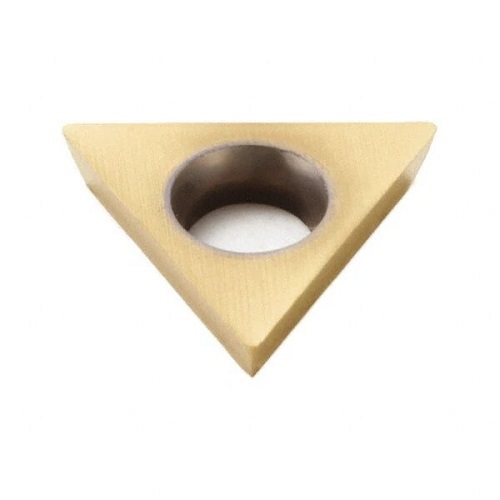

Seco Turning Insert TDAB Insert Style 15° Grade CP500 - SECO

Description

Turning Insert C Shape Code B Insert Type 15° Grade CP500

C shape code
B Insert Type.
15° insert side clearance angles.
± 0.025/± 0.025mm tolerance.

CP500 Insert Grade

PVD coated.
Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys.
Especially suitable in intermittent cuts.
(Ti, Al)N + TiN.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0116362

Brand Seco

Model Number 02723693

Barcode Number 23693027001009

Designation TDAB06T0005,CP500

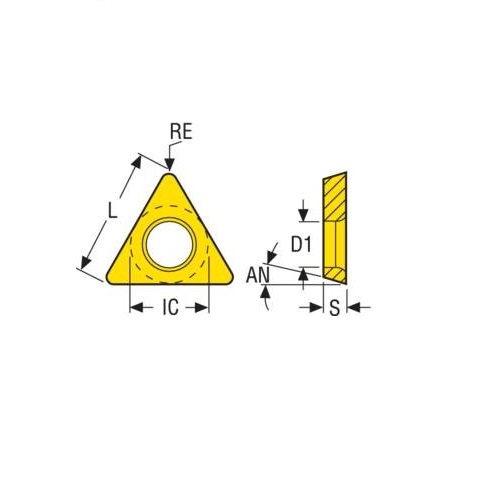

Insert Shape Code (SC) T

Tolerance ñ 0.025/ñ 0.025mm

Theoretical Cutting Edge Length (L) mm 6.8

Insert Included Angle (epsr) Deg 60.0 deg

Fixing Hole Diameter (d1) Mm 2.4

Clearance Angle Major (an) Deg 15.0 deg

Inscribed Circle Diameter (IC) mm 4.06

Fixing Hole Diameter D1 Mm 2.4

Grade Grade CP500

Insert Seat Size Code (SSC) 6

Corner Radius (RE) mm 0.05

Insert Thickness (S) mm 1.19

Cutting Edge Effective Length (LE) mm 6.75

Insert Hand (IH) Neutral

Cutting Edge Count (CEDC) 3

Grade Type Carbide PVD

Type Turning Insert
Insert Grade Grade CP500
Insert Style TDAB
