Description

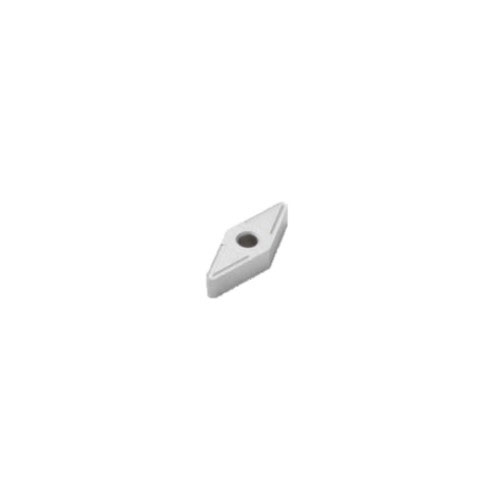

Seco Turning Insert V Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - MR4-203 Grade 883 ± 0.13/± 0.05mm Tolerance VNMG220408-MR4-203,883 10pcs

Turning Insert VNMG Insert Style - MR4-203 Grade 883

  • V shape code.
  • G insert type, with hole and chip breaker on both faces.
  • 883 insert grade.

883 Insert Grade

  • Relatively hard and still tough uncoated micrograin grade for machining of titanium in roughing applications and also suitable for superalloys.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116733
  • Brand Seco
  • Model Number 00063607
  • Barcode Number 63607000001007
  • Type Turning Insert
  • Designation VNMG220408-MR4-203 883
  • Grade 883

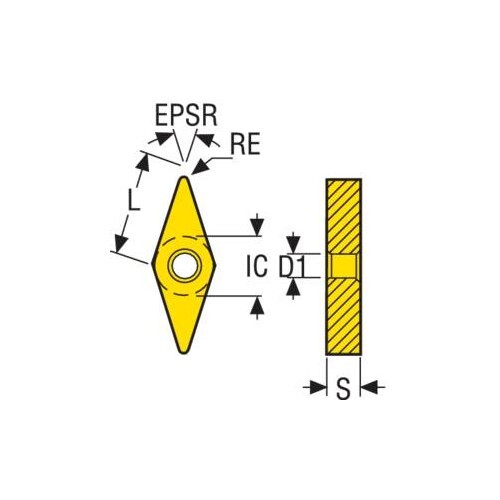

  • Insert Thickness (S) mm 4.76
  • Corner Radius (RE) mm 0.8
  • Insert Shape Code (SC) V
  • Insert Grade Grade 883
  • Insert Style VNMG
  • Inscribed Circle Diameter (IC) mm 12.7
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 5.2
  • Insert Included Angle (epsr) Deg 35.0 deg
  • Theoretical Cutting Edge Length (L) mm 22
  • Chipbreaker Programme MR4-203
SKU: A0116733

Seco Turning Insert V Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - MR4-203 Grade 883 ± 0.13/± 0.05mm Tolerance VNMG220408-MR4-203,883 - Pack of 10

Turning Insert VNMG Insert Style - MR4-203 Grade 883

$421.38
