Description

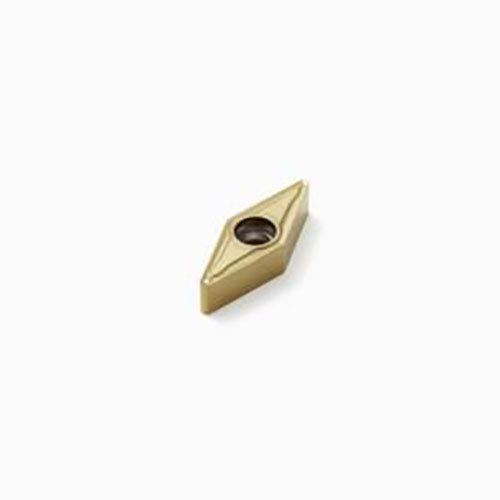

Seco Turning Insert V Shape Code 4.76 x 0.8 x 7.94mm U Insert Type - M3 Grade TS2000 ± 0.13/± 0.05mm Tolerance VNMU130408-M3,TS2000 10pcs

Turning Insert VNMU Insert Style - M3 Grade TS2000

V shape code.
U insert type, negative insert with hole and chip-breaker on both faces for tool holders with pin lock only.
TS2000 insert grade.

TS2000 Insert Grade

Hard micrograin wear-resistant grade intended for finishing in superalloys and titanium as well as in many stainless steels.
(Ti, Al)N + TiN.

M3 Chipbreaker Programme

First choice for medium-rough machining and also the most versatile Seco chipbreaker.
In most cases, it is the only chipbreaker needed.
It offers the best useful life and best chip breaking in a wide range of cutting data and workpiece materials.
Suitable for precision forged and cast workpieces (NNS or Near Net Shape workpieces) as regards both chip control and edge strength.
Indicative machining range: f = 0,15-0,50 mm/rev, ap = 0,5-5,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
