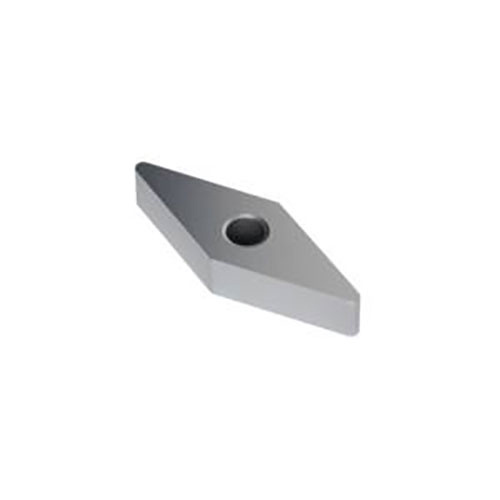

Seco Turning Insert V Shape Code 4.76 x 0.8 x 9.53mm A Insert Type Grade TK1501 ± 0.13/± 0.05mm Tolerance VNMA160408,TK1501 5pcs

Turning Insert VNMA Insert Style Grade TK1501

  • V shape code.
  • A insert type, with a hole, no chipbreaker.
  • TK1501 insert grade.

TK1501 Insert Grade

  • Duratomic® grade.
  • A highly wear-resistant grade for cast irons in general as well as in steels.
  • The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0118409
  • Brand Seco
  • Model Number 03062888
  • Barcode Number 62888030000500
  • Type Turning Insert
  • Designation VNMA160408 TK1501
  • Grade TK1501
  • Insert Thickness (S) mm 4.76
  • Corner Radius (RE) mm 0.8
  • Insert Shape Code (SC) V
  • Insert Grade Grade TK1501
  • Insert Style VNMA
  • Inscribed Circle Diameter (IC) mm 9.53
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 3.8
  • Insert Included Angle (epsr) Deg 35.0 deg
  • Theoretical Cutting Edge Length (L) mm 16.6
SKU: A0118409

Seco Turning Insert V Shape Code 4.76 x 0.8 x 9.53mm A Insert Type Grade TK1501 ± 0.13/± 0.05mm Tolerance VNMA160408,TK1501 - Pack of 5

Turning Insert VNMA Insert Style Grade TK1501

$207.82
