Description

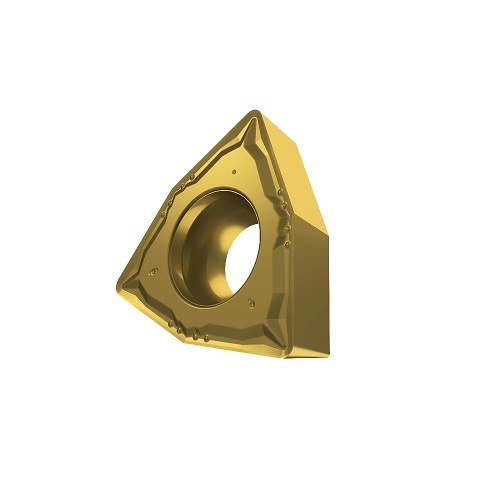

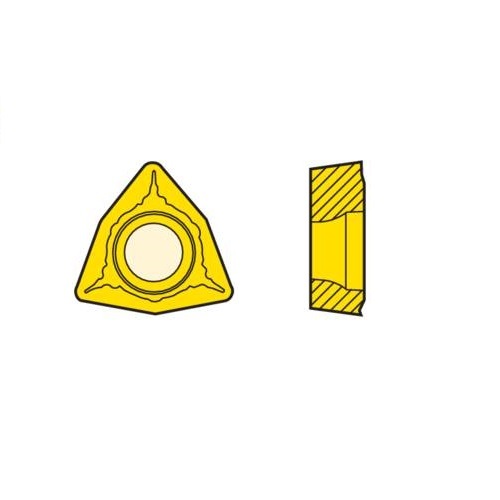

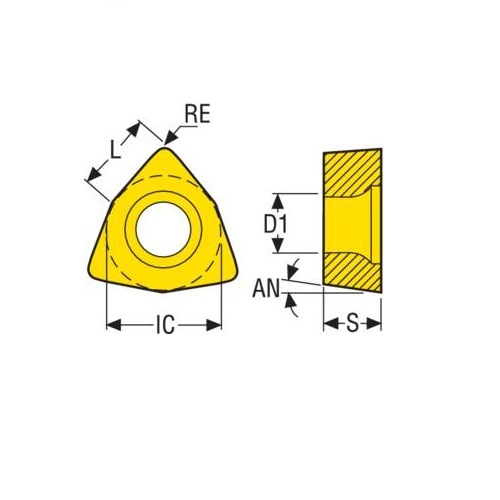

Turning Insert W Shape Code T Insert Type - W-F1 7° Grade CP500

CP500 Insert Grade

PVD coated.
Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys. Especially suitable in intermittent cuts.
(Ti, Al)N + TiN.

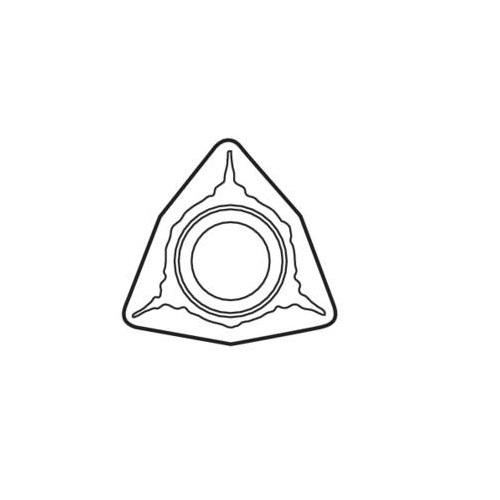

W-F1 Chipbreaker Programme

A versatile chipbreaker for positive inserts. For finishing machining of steel, stainless steel and cast iron giving good surface finish.
Suitable for high feed rates at small depths of cut.
Indicative machining range: f = 0,05-0,50 mm/rev, ap = 0,25-3,00 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
