Description

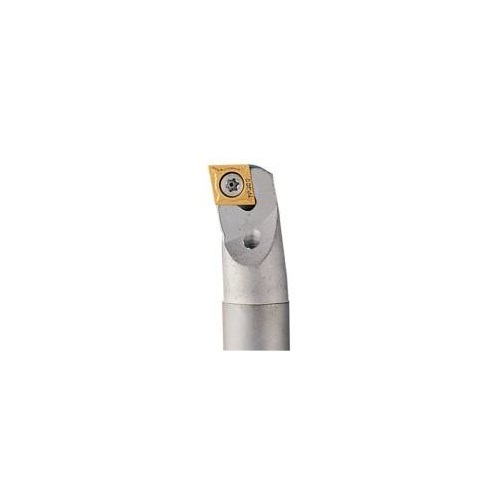

Seco Internal Turning Toolholder Solid Carbide Screw Lock Right 90° C Insert Shape - Round E08K-SCFCR06-R

Turning Internal Toolholder (Solid Carbide - Screw Lock - F Type - C Insert Shape)

  • Solid carbide with brazed or equivalent cutting head and coolant passage.
  • C insert shape.
  • 7° ISCA (Insert Side Clearance Angles).
  • Screw Lock
  • F tool type, offset shank with 0° (90°) end cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114544
  • Brand Seco
  • Model Number 75011692
  • Barcode Number 11692750000100
  • Net Weight (kg) 0.07
  • Designation E08K-SCFCR06-R

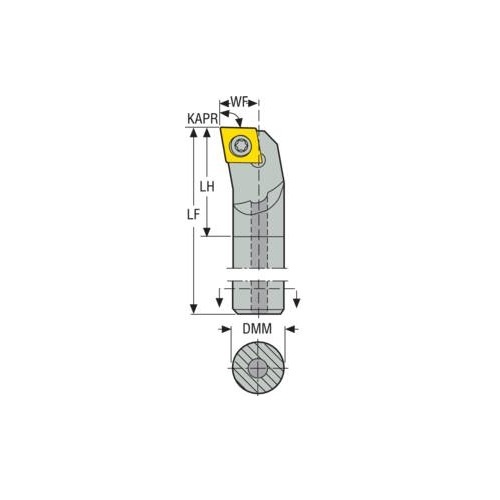

  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Connection Text Machine Side (CTMS) 8
  • Direction Of Cutting (hand) Right
  • Connection Text Workpiece Side (ctws) CC0602
  • Tool Cutting Edge Angle (KAPR) 90.0 deg
  • Head Length (LH) mm 21
  • Shank Diameter (DMM) 8
  • Functional Length (LF) 125
  • Tool Type F Type
  • Cutting Diameter Internal Minimum (DCINN) 10
  • Tool Cutting Edge Angle Code (KAPRC) F
  • Inclination Angle (LAMS) -11.0 deg
  • Cutting Edge Length (mm) 6
  • Functional Width (WF) mm 5
  • Type Turning Toolholder
  • Shank Type Cylindrical
  • Version (internal/external/both) Internal
  • Tool Holder Type Solid Carbide
  • Insert Clamping System (ICS) Screw Lock

Video

SKU: A0114544

Seco Internal Turning Toolholder Solid Carbide Screw Lock 125 x 8 x 6mm Right 90° C Insert Shape - Round E08K-SCFCR06-R

Turning Internal Toolholder (Solid Carbide - Screw Lock

$440.00
RRP $550.00
SAVE $110.00 (20%)
