Seco Turning Internal Toolholder (Solid Carbide - Screw Lock - L Type) Right - SECO

Description

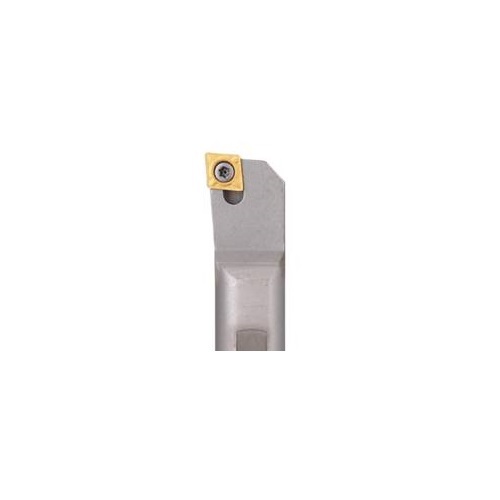

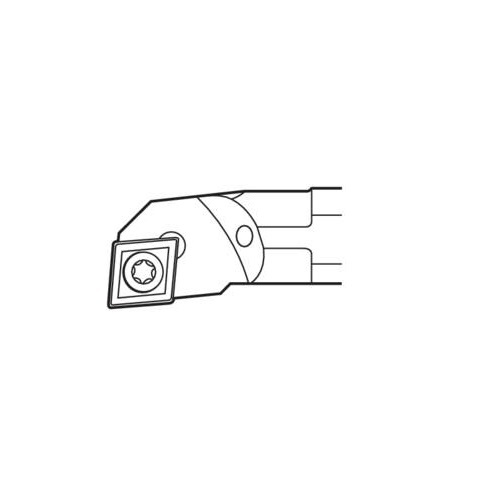

Seco Internal Turning Toolholder Solid Carbide Screw Lock Right 95° C Insert Shape E06-SCLCR-2

Turning Internal Toolholder (Solid Carbide - Screw Lock - L Type - C Insert Shape)

Solid carbide with brazed or equivalent cutting head and coolant passage.
C insert shape.
7° ISCA (Insert Side Clearance Angles).
Screw Lock
L tool type, offset shank with negative 5° (95°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114576

Brand Seco

Model Number 00093165

Barcode Number 93165000000105

Net Weight (kg) 0.16

Designation E06-SCLCR-2

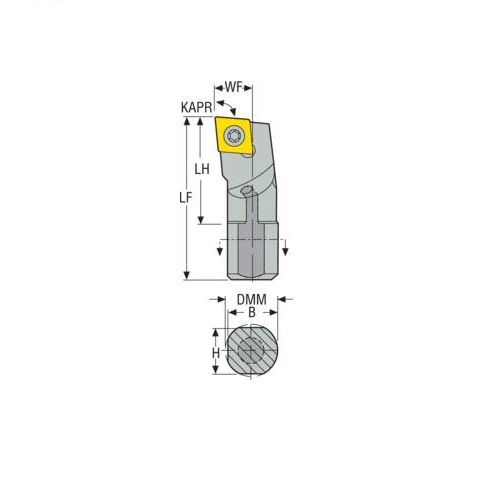

Height Of Tool Holder Shank (H) mm 8

Insert Size Inscribed Circle Diameter (mm) 2

Functional Width (WF) mm 6.4

Inclination Angle (LAMS) -15.0 deg

Tool Cutting Edge Angle Code (KAPRC) L

Cutting Diameter Internal Minimum (DCINN) 12.7

Tool Type L Type

Functional Length (LF) 152.4

Shank Diameter (DMM) 9.53

Head Length (LH) mm 27

Tool Cutting Edge Angle (KAPR) 95.0 deg

Connection Text Workpiece Side (ctws) CC0602

Shank Width (b) mm 8.9

Direction Of Cutting (hand) Right

Connection Text Machine Side (CTMS) 9.525

Rake Angle Axial (gamp) -15.0 deg

Rake Angle Orthogonal (gamo) 0.0 deg

Type Turning Toolholder
Shank Type Cylindrical
Version (internal/external/both) Internal
Tool Holder Type Solid Carbide
Insert Clamping System (ICS) Screw Lock
