Specifications

AIMS SKU A0114638
Brand Seco
Model Number 00093116
Barcode Number 93116000000107
Net Weight (kg) 0.1
Designation E06-STFCR-2

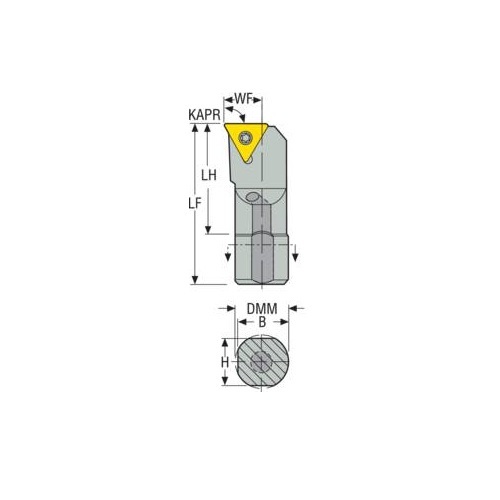

Height Of Tool Holder Shank (H) mm 8
Insert Size Inscribed Circle Diameter (mm) 2
Functional Width (WF) mm 6.4
Inclination Angle (LAMS) -15.0 deg
Tool Cutting Edge Angle Code (KAPRC) F
Cutting Diameter Internal Minimum (DCINN) 12.7
Tool Type F Type
Functional Length (LF) 152.4
Shank Diameter (DMM) 9.53
Head Length (LH) mm 27
Tool Cutting Edge Angle (KAPR) 90.0 deg
Connection Text Workpiece Side (ctws) TC1102
Shank Width (b) mm 8.9
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 9.525
Rake Angle Axial (gamp) -15.0 deg
Rake Angle Orthogonal (gamo) 0.0 deg

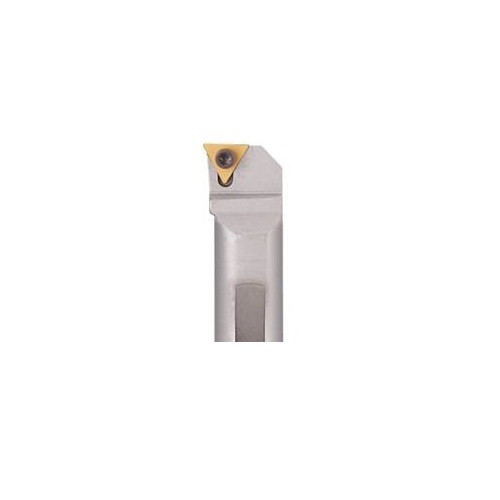

• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Solid Carbide
• Insert Clamping System (ICS) Screw Lock
