Seco Turning Internal Toolholder (Solid Steel - Multiple Lock - L Type) - SECO

Description

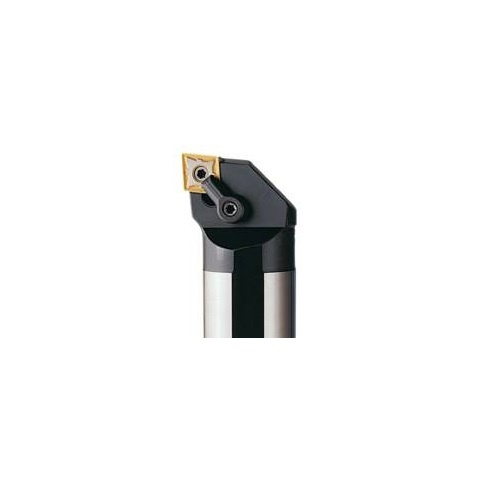

Seco Internal Turning Toolholder Solid Steel Multiple Lock

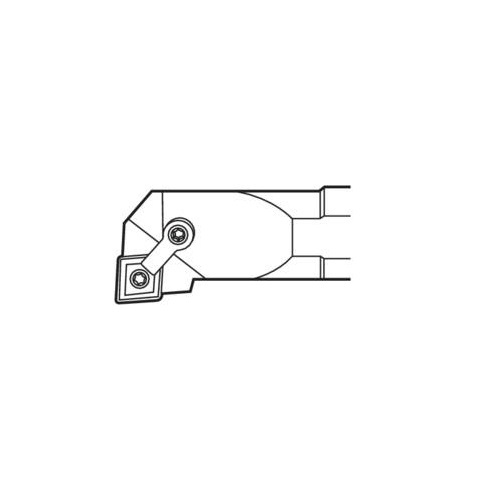

Turning Internal Toolholder (Solid Steel - Multiple Lock - L Type - C Insert Shape)

Solid Steel.
C insert shape.
0° ISCA (Insert Side Clearance Angles).
Multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
L tool type, offset shank with negative 5° (95°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114334

Brand Seco

Model Number 75002243

Barcode Number 2243750000106

Net Weight (kg) 0.895

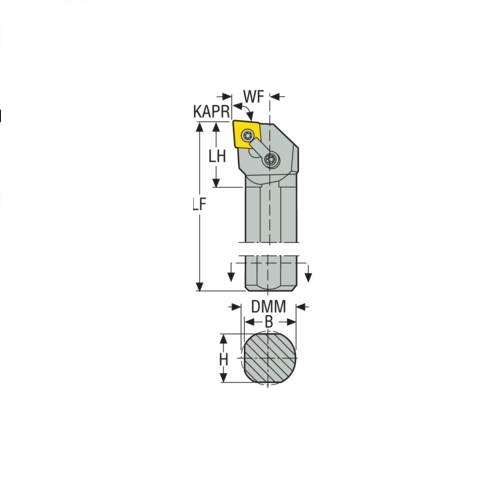

Designation S25S-MCLNL12

Shank Diameter (DMM) 25mm

Functional Width (WF) mm 17

Cutting Edge Length (mm) 12

Inclination Angle (LAMS) -14.0 deg

Tool Cutting Edge Angle Code (KAPRC) L

Cutting Diameter Internal Minimum (DCINN) 32

Tool Type L Type

Functional Length (LF) 250mm

Height Of Tool Holder Shank (H) mm 23

Head Length (LH) mm 40

Tool Cutting Edge Angle (KAPR) 95.0 deg

Connection Text Workpiece Side (ctws) CN1204

Shank Width (b) mm 24

Direction Of Cutting (hand) Left

Connection Text Machine Side (CTMS) 25

Rake Angle Orthogonal (gamo) -5.0 deg

Type Turning Toolholder
Shank Type Cylindrical
Version (internal/external/both) Internal
Tool Holder Type Solid Steel
Insert Clamping System (ICS) Multiple Lock
