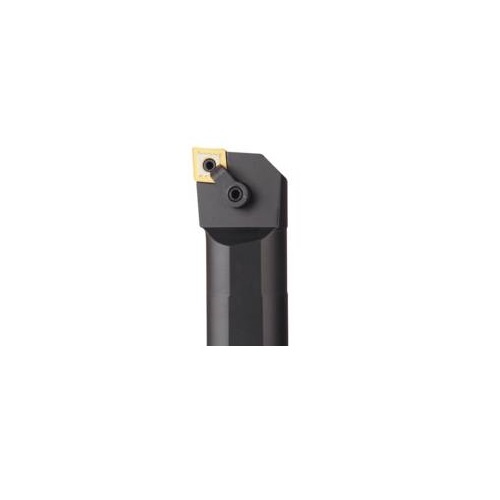

Seco Turning Internal Toolholder (Solid Steel - Multiple Lock - L Type) - SECO

Description

Seco Internal Turning Toolholder Solid Steel Multiple Lock

Turning Internal Toolholder (Solid Steel - Multiple Lock - L Type - C Insert Shape - 3mm Cutting Edge Length)

Solid Steel.
C insert shape.
0° ISCA (Insert Side Clearance Angles).
3mm cutting edge length.

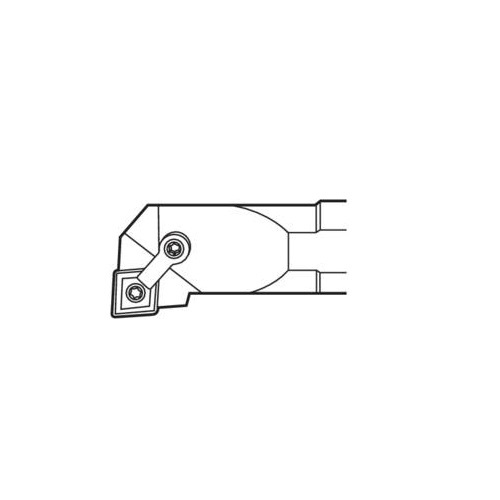

Multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
L tool type, offset shank with negative 5° (95°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114357

Brand Seco

Model Number 00043196

Barcode Number 43196000000104

Net Weight (kg) 0.594

Designation S12-MCLNL-3

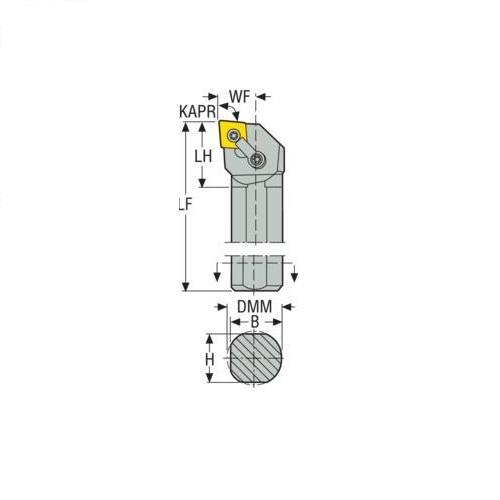

Height Of Tool Holder Shank (H) mm 18

Functional Width (WF) mm 12.7

Cutting Edge Length (mm) 3

Inclination Angle (LAMS) -14.0 deg

Tool Cutting Edge Angle Code (KAPRC) L

Cutting Diameter Internal Minimum (DCINN) 25.4

Tool Type L Type

Functional Length (LF) 254mm

Shank Diameter (DMM) 19.05mm

Head Length (LH) mm 44.5

Tool Cutting Edge Angle (KAPR) 95.0 deg

Connection Text Workpiece Side (ctws) CN0903

Shank Width (b) mm 18.5

Direction Of Cutting (hand) Left

Connection Text Machine Side (CTMS) 19.05

Rake Angle Axial (gamp) -14.0 deg

Rake Angle Orthogonal (gamo) -5.0 deg

Type Turning Toolholder
Shank Type Cylindrical
Version (internal/external/both) Internal
Tool Holder Type Solid Steel
Insert Clamping System (ICS) Multiple Lock
