Specifications

AIMS SKU A0114363
Brand Seco
Model Number 75056415
Barcode Number 56415750000108
Net Weight (kg) 0.58
Designation S12-MDUNL-3

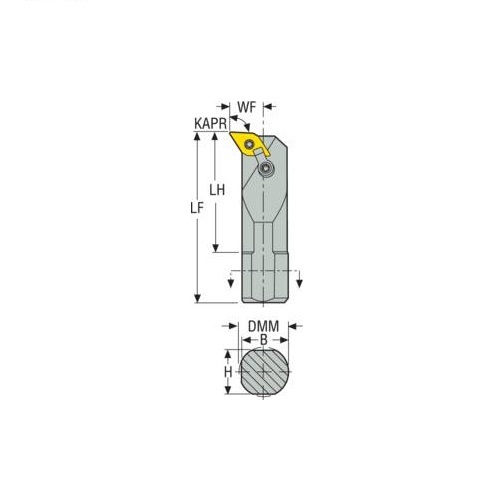

Height Of Tool Holder Shank (H) mm 17.5
Functional Width (WF) mm 14.3
Cutting Edge Length (mm) 3
Inclination Angle (LAMS) -14.0 deg
Tool Cutting Edge Angle Code (KAPRC) U
Cutting Diameter Internal Minimum (DCINN) 24.89
Tool Type U Type
Functional Length (LF) 254mm
Shank Diameter (DMM) 19.05mm
Head Length (LH) mm 20.3
Tool Cutting Edge Angle (KAPR) 93.0 deg
Connection Text Workpiece Side (ctws) DN1104
Shank Width (b) mm 18
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 19.05
Rake Angle Axial (gamp) -14.0 deg
Rake Angle Orthogonal (gamo) -5.0 deg
• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Solid Steel
• Insert Clamping System (ICS) Multiple Lock
