Description

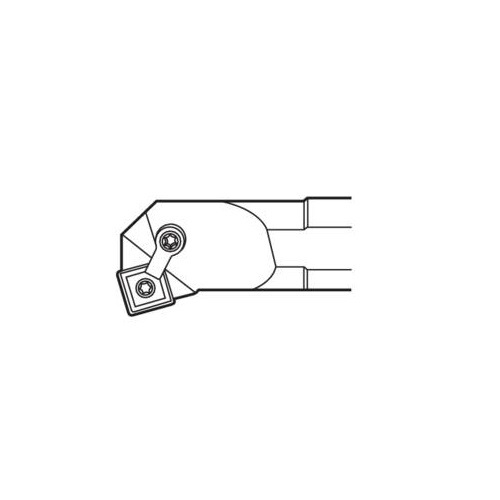

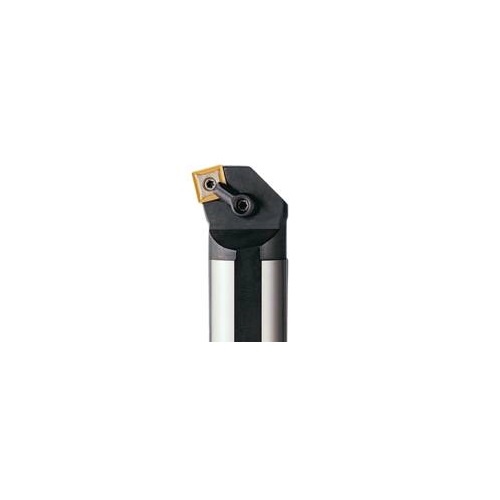

Seco Internal Turning Toolholder Solid Steel Multiple Lock

Turning Internal Toolholder (Solid Steel - Multiple Lock - K Type - S Insert Shape)

  • Solid Steel.
  • S insert shape.
  • 0° ISCA (Insert Side Clearance Angles).
  • Multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
  • K tool type, offset shank with 15° (75°) end cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114365
  • Brand Seco
  • Model Number 75002263
  • Barcode Number 2263750000104
  • Net Weight (kg) 1.79
  • Designation S32T-MSKNL12

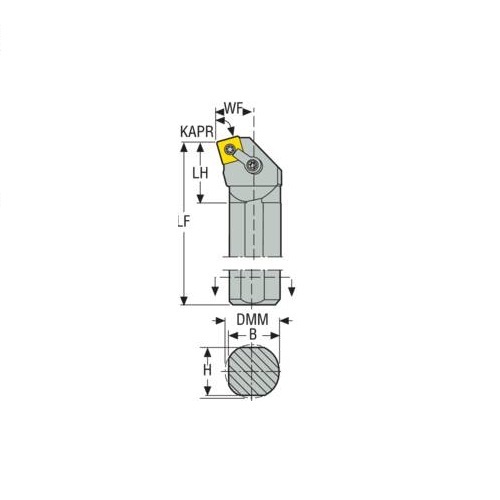

  • Height Of Tool Holder Shank (H) mm 30
  • Functional Width (WF) mm 22
  • Inclination Angle (LAMS) -13.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) K
  • Cutting Diameter Internal Minimum (DCINN) 40
  • Tool Type K Type
  • Functional Length (LF) 300mm
  • Shank Diameter (DMM) 32mm
  • Head Length (LH) mm 50
  • Tool Cutting Edge Angle (KAPR) 75.0 deg
  • Connection Text Workpiece Side (ctws) SN1204
  • Shank Width (b) mm 31
  • Direction Of Cutting (hand) Left
  • Connection Text Machine Side (CTMS) 32
  • Rake Angle Orthogonal (gamo) -5.0 deg
  • Type Turning Toolholder
  • Shank Type Cylindrical
  • Version (internal/external/both) Internal
  • Tool Holder Type Solid Steel
  • Insert Clamping System (ICS) Multiple Lock

Video

SKU: A0114365

Seco Internal Turning Toolholder Solid Steel Multiple Lock 300 x 32 x 12mm Left 75° S Insert Shape S32T-MSKNL12

Turning Internal Toolholder (Solid Steel - Multiple Lock

$435.60
RRP $544.50
SAVE $108.90 (20%)
