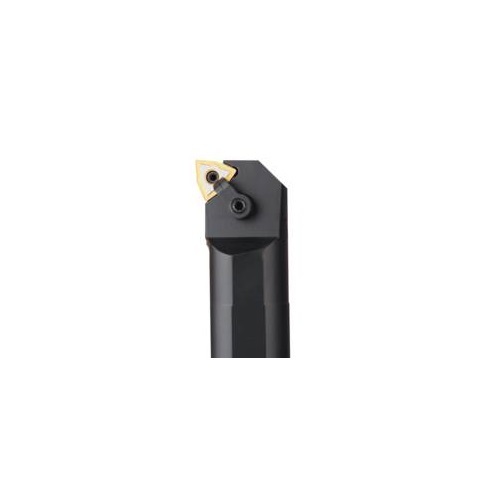

Seco Internal Turning Toolholder Solid Steel Multiple Lock

Turning Internal Toolholder (Solid Steel - Multiple Lock - L Type - W Insert Shape)

  • Solid Steel.
  • W insert shape.
  • 0° ISCA (Insert Side Clearance Angles).

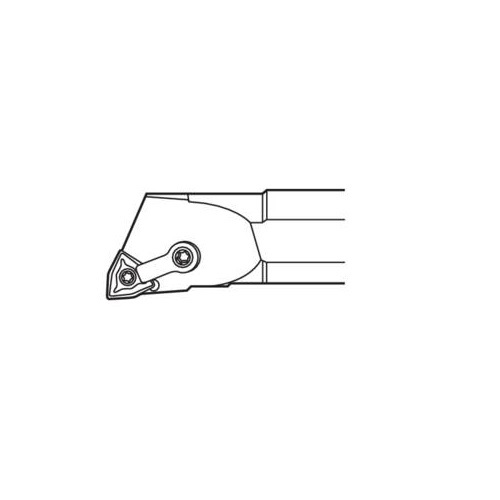

  • Multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
  • L tool type, offset shank with negative 5° (95°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114406
  • Brand Seco
  • Model Number 75051589
  • Barcode Number 51589750000101
  • Net Weight (kg) 0.55

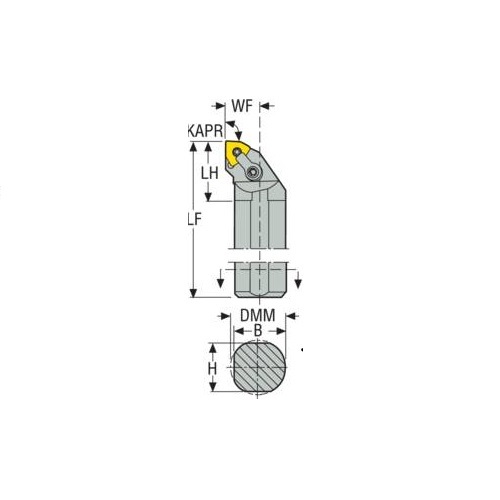

  • Designation S12-MWLNR-3
  • Height Of Tool Holder Shank (H) mm 18
  • Insert Size Inscribed Circle Diameter (mm) 3
  • Functional Width (WF) mm 12.7
  • Inclination Angle (LAMS) -14.0 deg
  • Cutting Diameter Internal Minimum (DCINN) 23.62
  • Tool Type L Type
  • Functional Length (LF) 254mm
  • Shank Diameter (DMM) 19.05mm
  • Head Length (LH) mm 44.5
  • Connection Text Workpiece Side (ctws) WN0604
  • Shank Width (b) mm 18.5
  • Direction Of Cutting (hand) Right
  • Connection Text Machine Side (CTMS) 19.05
  • Rake Angle Axial (gamp) -14.0 deg
  • Rake Angle Orthogonal (gamo) -5.0 deg
  • Type Turning Toolholder
  • Shank Type Cylindrical
  • Version (internal/external/both) Internal
  • Tool Holder Type Solid Steel
  • Insert Clamping System (ICS) Multiple Lock

Video

SKU: A0114406

Seco Internal Turning Toolholder Solid Steel Multiple Lock 254 x 19.05 x 23.62mm Right 95° W Insert Shape S12-MWLNR-3

Turning Internal Toolholder (Solid Steel - Multiple Lock

$383.68
RRP $479.60
SAVE $95.92 (20%)
