Specifications

AIMS SKU A0114418
Brand Seco
Model Number 02411148
Barcode Number 11148024000104
Net Weight (kg) 1.03

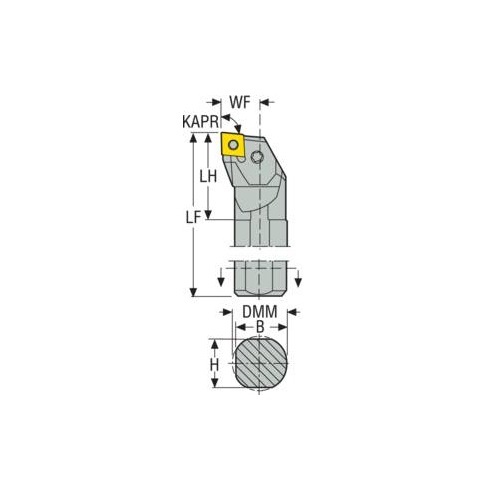

Designation S25T-PCLNL12
Height Of Tool Holder Shank (H) mm 23
Functional Width (WF) mm 17
Cutting Edge Length (mm) 12
Inclination Angle (LAMS) -10.0 deg
Cutting Diameter Internal Minimum (DCINN) 32
Tool Type L Type
Functional Length (LF) 300mm
Shank Diameter (DMM) 25mm
Head Length (LH) mm 40
Tool Cutting Edge Angle (KAPR) 95.0 deg
Connection Text Workpiece Side (ctws) CN1204
Shank Width (b) mm 23
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 25
Rake Angle Orthogonal (gamo) -6.0 deg
• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Solid Steel
• Insert Clamping System (ICS) Pin Lock
