Specifications

AIMS SKU A0114421
Brand Seco
Model Number 02411147
Barcode Number 11147024000107
Net Weight (kg) 1.022
Designation S25T-PCLNR12

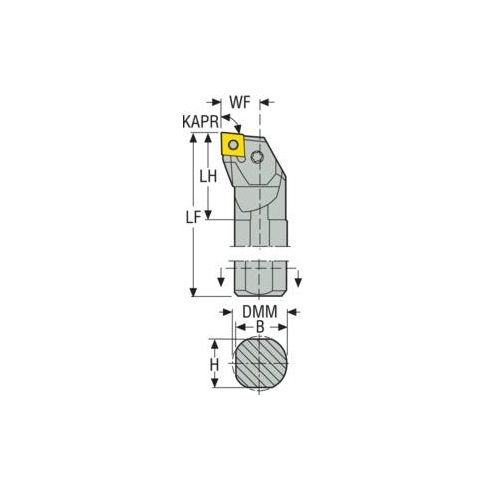

Height Of Tool Holder Shank (H) mm 23
Functional Width (WF) mm 17
Cutting Edge Length (mm) 12
Inclination Angle (LAMS) -10.0 deg
Cutting Diameter Internal Minimum (DCINN) 32
Tool Type L Type
Functional Length (LF) 300mm
Shank Diameter (DMM) 25mm
Head Length (LH) mm 40
Tool Cutting Edge Angle (KAPR) 95.0 deg
Connection Text Workpiece Side (ctws) CN1204
Shank Width (b) mm 23
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 25
Rake Angle Orthogonal (gamo) -6.0 deg

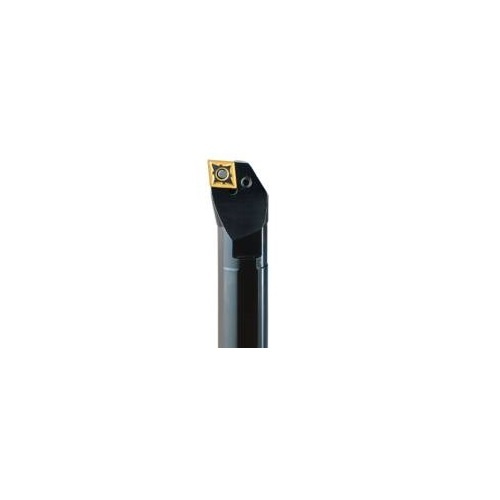

• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Solid Steel

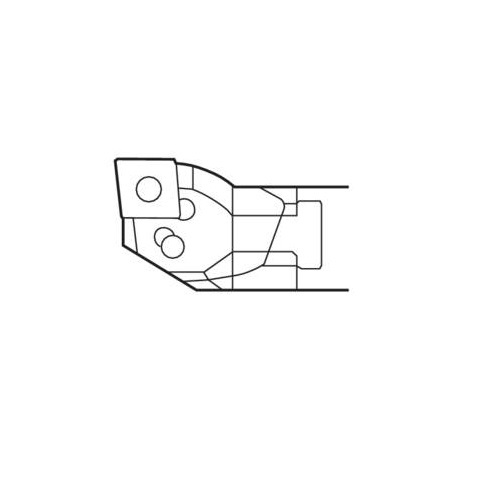

• Insert Clamping System (ICS) Pin Lock
