Specifications

AIMS SKU A0114463
Brand Seco
Model Number 02411162
Barcode Number 11162024000100
Net Weight (kg) 1.05

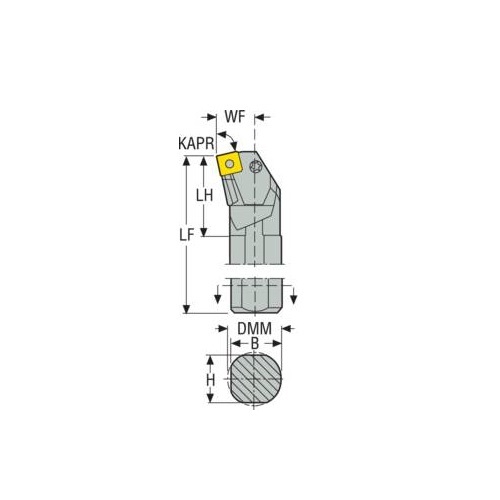

Designation S25T-PSKNL12
Shank Diameter (DMM) 24.98mm
Functional Width (WF) mm 16.9
Cutting Edge Length (mm) 12
Inclination Angle (LAMS) -10.0 deg
Tool Cutting Edge Angle Code (KAPRC) K
Cutting Diameter Internal Minimum (DCINN) 30
Tool Type K Type
Functional Length (LF) 300mm
Height Of Tool Holder Shank (H) mm 23
Head Length (LH) mm 43
Tool Cutting Edge Angle (KAPR) 75.0 deg
Connection Text Workpiece Side (ctws) SN1204
Shank Width (b) mm 24.5
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 25
Rake Angle Orthogonal (gamo) -6.0 deg
• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Solid Steel
• Insert Clamping System (ICS) Pin Lock
