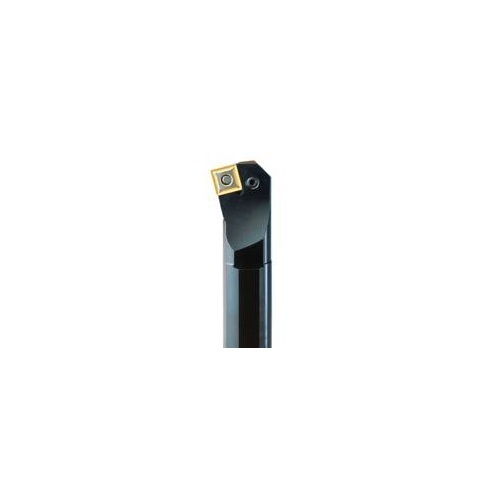

Seco Turning Internal Toolholder (Solid Steel - Pin Lock - K Type) Right - SECO

Description

Seco Internal Turning Toolholder Solid Steel Pin Lock

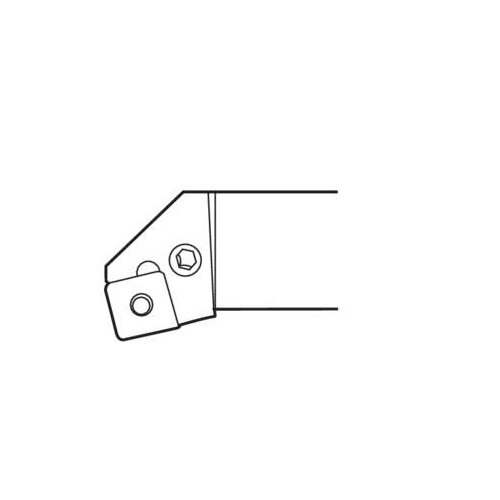

Turning Internal Toolholder (Solid Steel - Pin Lock - K Type - S Insert Shape)

Solid Steel.
S insert shape.
0° ISCA (Insert Side Clearance Angles).
Pin lock assembly, (NL/PL toolholders).
K tool type, offset shank with 15° (75°) end cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114466

Brand Seco

Model Number 00734327

Barcode Number 34327007000107

Net Weight (kg) 1.032

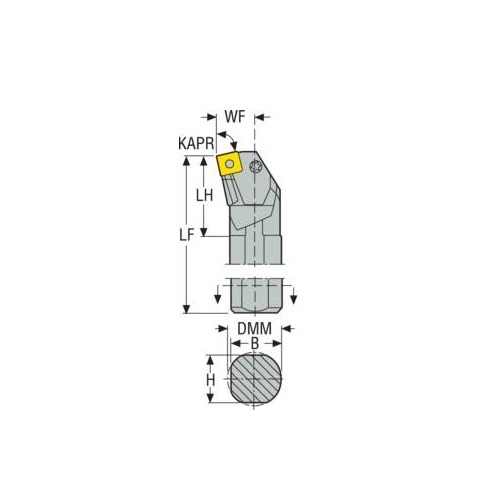

Designation S25T-PSKNR12

Shank Diameter (DMM) 24.98mm

Functional Width (WF) mm 16.9

Cutting Edge Length (mm) 12

Inclination Angle (LAMS) -10.0 deg

Tool Cutting Edge Angle Code (KAPRC) K

Cutting Diameter Internal Minimum (DCINN) 30

Tool Type K Type

Functional Length (LF) 300mm

Height Of Tool Holder Shank (H) mm 23

Head Length (LH) mm 43

Connection Text Workpiece Side (ctws) SN1204

Shank Width (b) mm 24.5

Direction Of Cutting (hand) Right

Connection Text Machine Side (CTMS) 25

Rake Angle Orthogonal (gamo) -6.0 deg

Type Turning Toolholder
Shank Type Cylindrical
Version (internal/external/both) Internal
Tool Holder Type Solid Steel
Insert Clamping System (ICS) Pin Lock
