Specifications

AIMS SKU A0114652
Brand Seco
Model Number 00057649
Barcode Number 57649000000108
Net Weight (kg) 0.03
Designation S0306-SCLDR-1.2

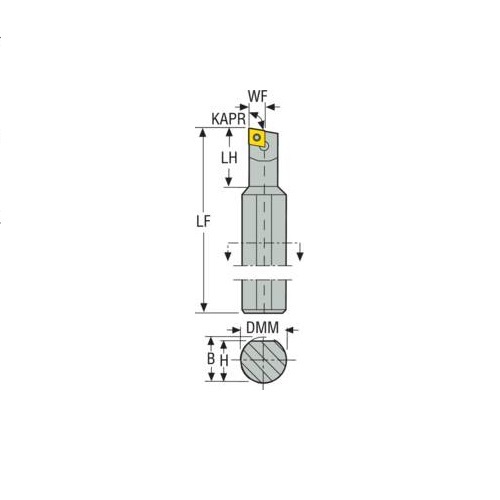

Shank Diameter (DMM) 9.53
Insert Size Inscribed Circle Diameter (mm) 1.2
Functional Width (WF) mm 2.6
Inclination Angle (LAMS) -12.0 deg
Tool Cutting Edge Angle Code (KAPRC) L
Cutting Diameter Internal Minimum (DCINN) 4.64
Tool Type L Type
Functional Length (LF) 63.5
Height Of Tool Holder Shank (H) mm 9.1
Head Length (LH) mm 13.2
Tool Cutting Edge Angle (KAPR) 95.0 deg
Connection Text Workpiece Side (ctws) CD04T0
Shank Width (b) mm 9.5
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 4.76
Rake Angle Orthogonal (gamo) 0.0 deg
• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Solid Steel
• Insert Clamping System (ICS) Screw Lock
