Seco Turning Internal Toolholder (Solid Steel - Screw Lock - L Type) Right - SECO

Description

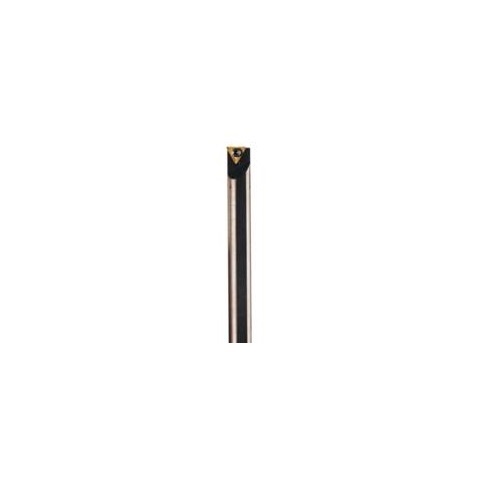

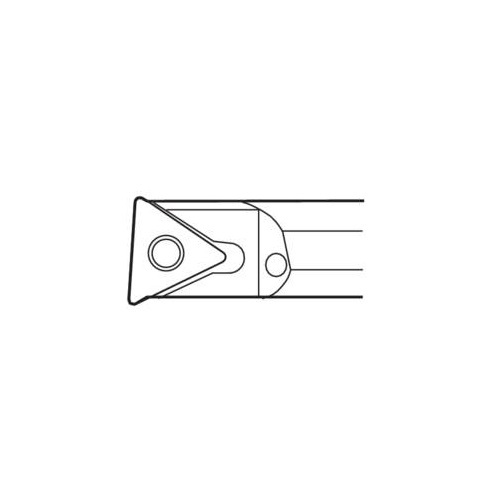

Seco Internal Turning Toolholder Solid Steel Screw Lock Right 95° T Insert Shape S04-STLDR-1.2

Turning Internal Toolholder (Solid Steel - Screw Lock - L Type - T Insert Shape - 1.2mm Cutting Edge Length)

Solid Steel.
T insert shape.
15° ISCA (Insert Side Clearance Angles).
Screw Lock.
L tool type, offset shank with negative 5° (95°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114657

Brand Seco

Model Number 00057658

Barcode Number 57658000000100

Net Weight (kg) 0.04

Designation S04-STLDR-1.2

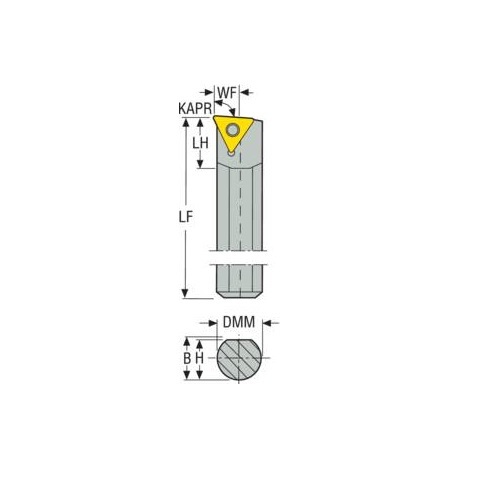

Shank Diameter (DMM) 6.35

Insert Size Inscribed Circle Diameter (mm) 1.2

Functional Width (WF) mm 4.2

Inclination Angle (LAMS) -12.0 deg

Tool Cutting Edge Angle Code (KAPRC) L

Cutting Diameter Internal Minimum (DCINN) 7.36

Tool Type L Type

Functional Length (LF) 101.6

Height Of Tool Holder Shank (H) mm 6

Head Length (LH) mm 10

Tool Cutting Edge Angle (KAPR) 95.0 deg

Connection Text Workpiece Side (ctws) TD06T0

Shank Width (b) mm 6.4

Direction Of Cutting (hand) Right

Connection Text Machine Side (CTMS) 6.35

Rake Angle Orthogonal (gamo) 0.0 deg

Type Turning Toolholder
Shank Type Cylindrical
Version (internal/external/both) Internal
Tool Holder Type Solid Steel
Insert Clamping System (ICS) Screw Lock
