Specifications

AIMS SKU A0114347
Brand Seco
Model Number 00002684
Barcode Number 2684000000109
Net Weight (kg) 6
Designation A32-MCLNL-4

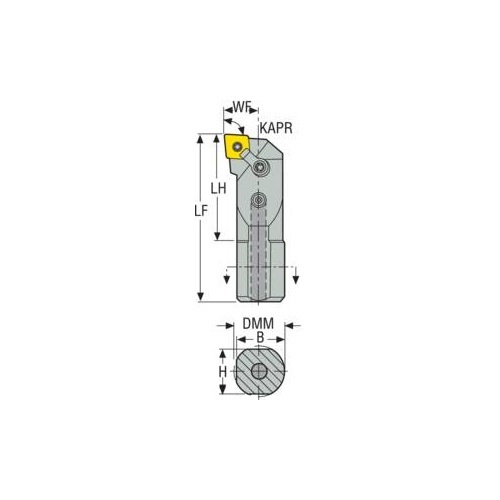

Shank Length (LS) mm 345.1
Functional Width (WF) mm 32.5
Cutting Edge Length (mm) 4
Inclination Angle (LAMS) -12.0 deg
Tool Cutting Edge Angle Code (KAPRC) L
Cutting Diameter Internal Minimum (DCINN) 65
Tool Type L Type
Functional Length (LF) 406.4mm
Shank Diameter (DMM) 50.8mm
Height Of Tool Holder Shank (H) mm 47.8
Head Length (LH) mm 61.3
Tool Cutting Edge Angle (KAPR) 95.0 deg
Connection Text Workpiece Side (ctws) CN1204
Shank Width (b) mm 49.3
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 50.8
Rake Angle Orthogonal (gamo) -5.0 deg

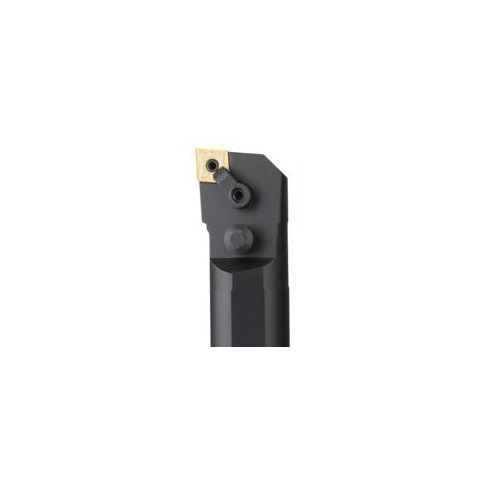

• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Steel
• Insert Clamping System (ICS) Multiple Lock
