Specifications
- AIMS SKU A0114356
- Brand Seco
- Model Number 00043209
- Barcode Number 43209000000101
- Net Weight (kg) 6
- Designation A32-MDUNR-4

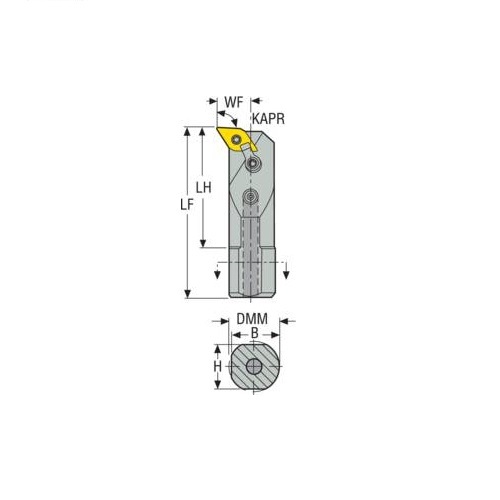

- Cutting Diameter Internal Minimum (DCINN) 76.2
- Shank Diameter (DMM) 50.8mm
- Tool Cutting Edge Angle (KAPR) 93.0 deg
- Direction Of Cutting (hand) Right
- Cutting Depth Max (CDX) mm 4
- Inclination Angle (LAMS) -10.0 deg
- Tool Type U Type
- Height Of Tool Holder Shank (H) mm 47.8
- Connection Text Workpiece Side (ctws) DN1504
- Connection Text Machine Side (CTMS) 50.8
- Cutting Depth Radial Max (CDRX) mm 4
- Functional Width (WF) mm 34.9
- Tool Cutting Edge Angle Code (KAPRC) U
- Functional Length (LF) 406.4mm
- Head Length (LH) mm 70
- Shank Width (b) mm 49.3
- Rake Angle Orthogonal (gamo) -5.0 deg
- Ramping Angle Maximum (RPMX) 25.0 deg
- Cutting Edge Length (mm) 4
- Type Turning Toolholder
- Tool Holder Type Steel
- Version (internal/external/both) Internal
- Insert Clamping System (ICS) Multiple Lock
- Shank Type Cylindrical
SKU: A0114356

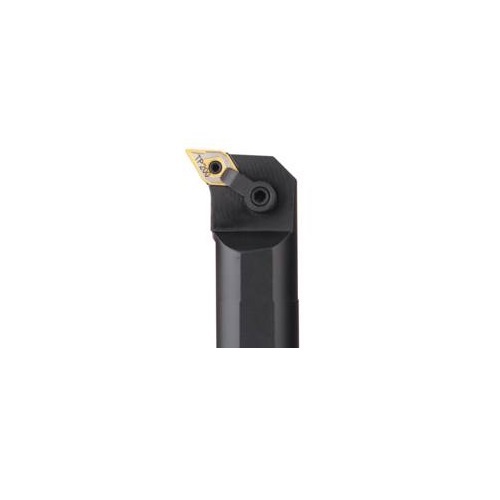

Seco Internal Turning Toolholder Steel Multiple Lock 406.4 x 50.8 x 76.2mm Right 93° D Insert Shape A32-MDUNR-4
Turning Internal Toolholder (Steel - Multiple Lock - U T
$592.24
SAVE $148.06 (20%)
