Specifications

AIMS SKU A0114379
Brand Seco
Model Number 00041119
Barcode Number 41119000000105
Net Weight (kg) 3.06
Designation A24-MVLNL-3

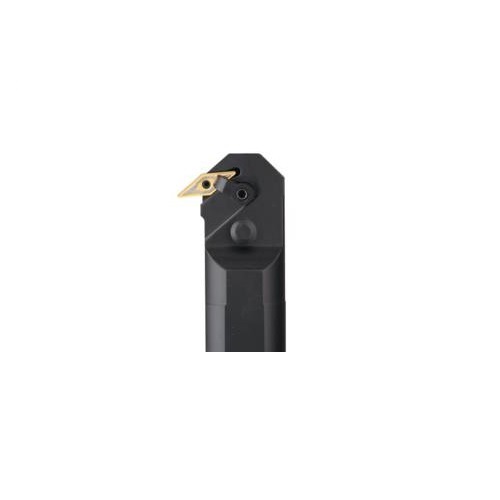

Type Turning Toolholder
Insert Clamping System (ICS) Multiple Lock
Shank Type Cylindrical
Cutting Depth Radial Max (CDRX) mm 4
Ramping Angle Maximum (RPMX) 45.0 deg
Cutting Depth Max (CDX) mm 4

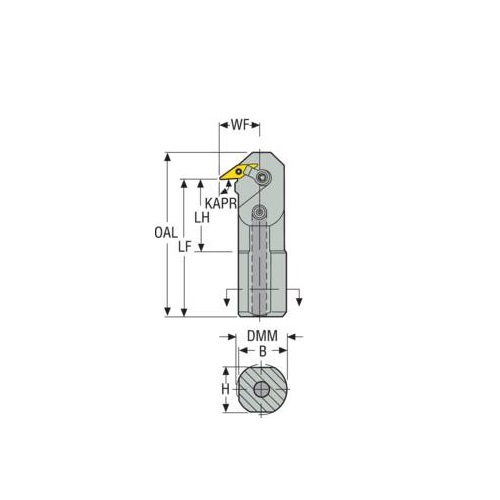

Functional Width (WF) mm 28.6
Cutting Edge Length (mm) 3
Inclination Angle (LAMS) -12.0 deg
Tool Cutting Edge Angle Code (KAPRC) L
Cutting Diameter Internal Minimum (DCINN) 57.1
Tool Type L Type
Functional Length (LF) 355.6mm
Shank Diameter (DMM) 38.1mm
Rake Angle Orthogonal (gamo) -5.0 deg
Tool Holder Type Steel
Shank Length (LS) mm 289.1
Height Of Tool Holder Shank (H) mm 34
Head Length (LH) mm 66.6
Tool Cutting Edge Angle (KAPR) 95.0 deg
Connection Text Workpiece Side (ctws) VN1604
Shank Width (b) mm 36.1
Version (internal/external/both) Internal
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 38.1
Rake Angle Axial (gamp) -12.0 deg
• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Steel
• Insert Clamping System (ICS) Multiple Lock
