Specifications

AIMS SKU A0114387
Brand Seco
Model Number 00041126
Barcode Number 41126000000103
Net Weight (kg) 1.92
Designation A20-MVPNR-3

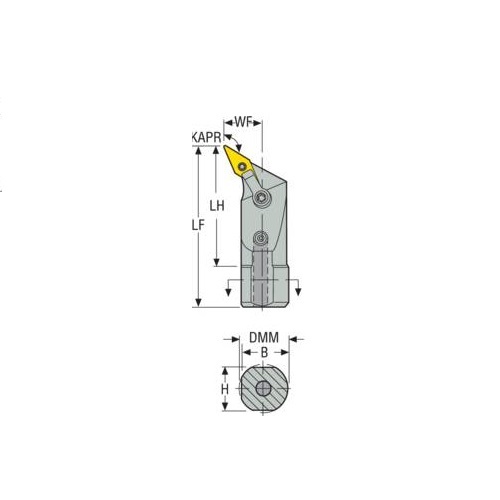

Shank Diameter (DMM) 31.75mm
Insert Size Inscribed Circle Diameter (mm) 3
Cutting Depth Radial Max (CDRX) mm 4
Ramping Angle Maximum (RPMX) 20.0 deg
Cutting Depth Max (CDX) mm 4
Functional Width (WF) mm 22.2
Inclination Angle (LAMS) -12.0 deg
Tool Cutting Edge Angle Code (KAPRC) P
Cutting Diameter Internal Minimum (DCINN) 44.45
Tool Type P Type
Functional Length (LF) 355.6mm
Shank Length (LS) mm 279.4
Height Of Tool Holder Shank (H) mm 29
Head Length (LH) mm 76.2
Tool Cutting Edge Angle (KAPR) 117.5 deg
Connection Text Workpiece Side (ctws) VN1604
Shank Width (b) mm 30.4
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 31.75
Rake Angle Axial (gamp) -12.0 deg
Rake Angle Orthogonal (gamo) -5.0 deg

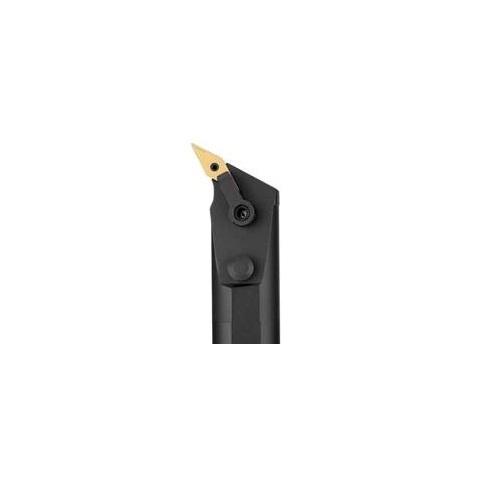

• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Steel
• Insert Clamping System (ICS) Multiple Lock
