Specifications

AIMS SKU A0114389
Brand Seco
Model Number 00041106
Barcode Number 41106000000105
Net Weight (kg) 2
Designation A20-MVUNR-3

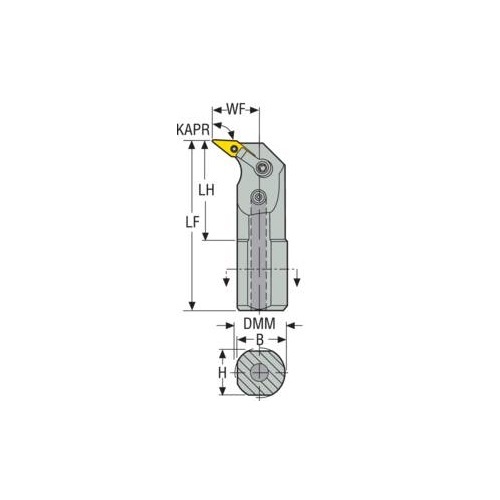

Functional Length (LF) 355.6mm
Insert Size Inscribed Circle Diameter (mm) 3
Cutting Depth Radial Max (CDRX) mm 4
Ramping Angle Maximum (RPMX) 48.0 deg
Cutting Depth Max (CDX) mm 4
Functional Width (WF) mm 28.6
Inclination Angle (LAMS) -12.0 deg
Tool Cutting Edge Angle Code (KAPRC) U
Cutting Diameter Internal Minimum (DCINN) 57.15
Tool Type U Type
Shank Diameter (DMM) 31.75mm
Height Of Tool Holder Shank (H) mm 29
Head Length (LH) mm 50
Tool Cutting Edge Angle (KAPR) 93.0 deg
Connection Text Workpiece Side (ctws) VN1604
Shank Width (b) mm 30.4
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 31.75
Rake Angle Axial (gamp) -12.0 deg
Rake Angle Orthogonal (gamo) -5.0 deg

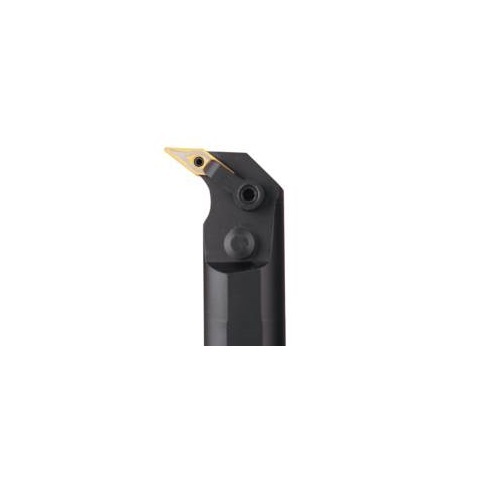

• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Steel
• Insert Clamping System (ICS) Multiple Lock
