Specifications

AIMS SKU A0114472
Brand Seco
Model Number 00039881
Barcode Number 39881000000106
Net Weight (kg) 0.361
Designation A20R-PTFNR11

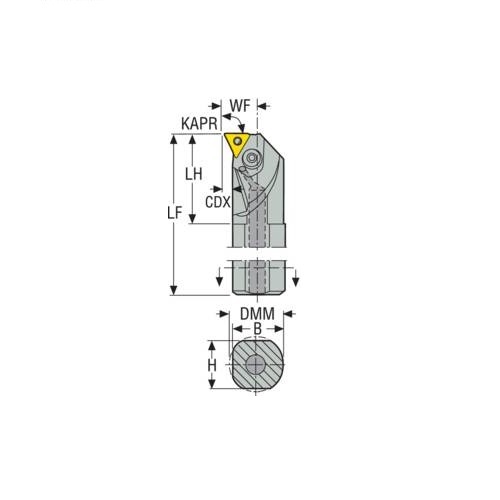

Functional Length (LF) 200mm
Cutting Depth Radial Max (CDRX) mm 2.5
Cutting Depth Max (CDX) mm 2.5
Functional Width (WF) mm 13
Cutting Edge Length (mm) 11
Inclination Angle (LAMS) -12.0 deg
Tool Cutting Edge Angle Code (KAPRC) F
Cutting Diameter Internal Minimum (DCINN) 25
Tool Type F Type
Shank Diameter (DMM) 20mm
Height Of Tool Holder Shank (H) mm 18
Head Length (LH) mm 32
Tool Cutting Edge Angle (KAPR) 90.0 deg
Connection Text Workpiece Side (ctws) TN1103
Shank Width (b) mm 19
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 20
Rake Angle Orthogonal (gamo) -6.0 deg
• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Steel
• Insert Clamping System (ICS) Pin Lock
