Seco Internal Turning Toolholder Steel Pin Lock

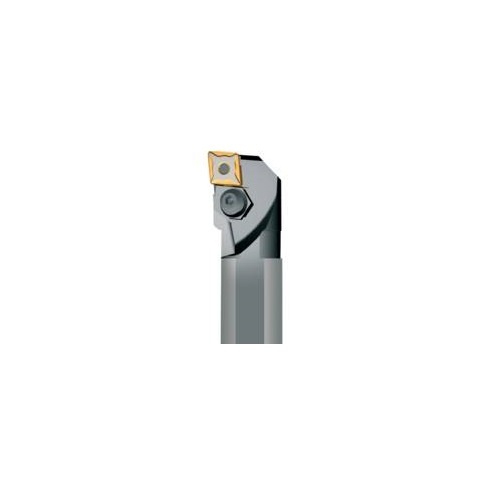

Turning Internal Toolholder (Steel - Pin Lock - L Type - C Insert Shape - 9mm Cutting Edge Length)

  • Steel with coolant passage.
  • C insert shape.
  • 0° ISCA (Insert Side Clearance Angles).
  • 9mm cutting edge length.
  • Pin lock assembly, (NL/PL toolholders).
  • L tool type, offset shank with negative 5° (95°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114414
  • Brand Seco
  • Model Number 02516563
  • Barcode Number 16563025000109
  • Net Weight (kg) 0.361
  • Designation A20R-PCLNL09

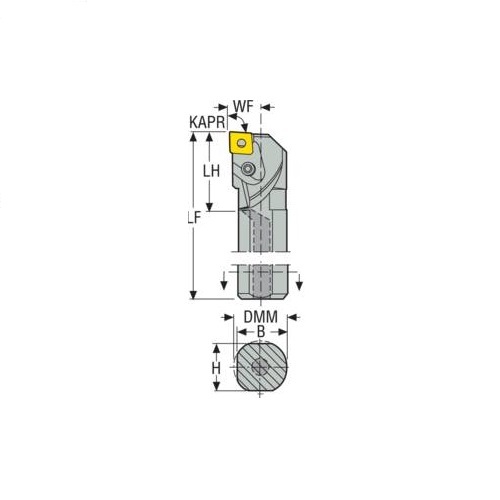

  • Height Of Tool Holder Shank (H) mm 18
  • Functional Width (WF) mm 13
  • Cutting Edge Length (mm) 9
  • Inclination Angle (LAMS) -12.0 deg
  • Cutting Diameter Internal Minimum (DCINN) 25
  • Tool Type L Type
  • Functional Length (LF) 200mm
  • Shank Diameter (DMM) 20mm
  • Head Length (LH) mm 30
  • Tool Cutting Edge Angle (KAPR) 95.0 deg
  • Connection Text Workpiece Side (ctws) CN0903
  • Shank Width (b) mm 19
  • Direction Of Cutting (hand) Left
  • Connection Text Machine Side (CTMS) 20
  • Rake Angle Orthogonal (gamo) -6.0 deg
  • Type Turning Toolholder
  • Shank Type Cylindrical
  • Version (internal/external/both) Internal
  • Tool Holder Type Steel
  • Insert Clamping System (ICS) Pin Lock
